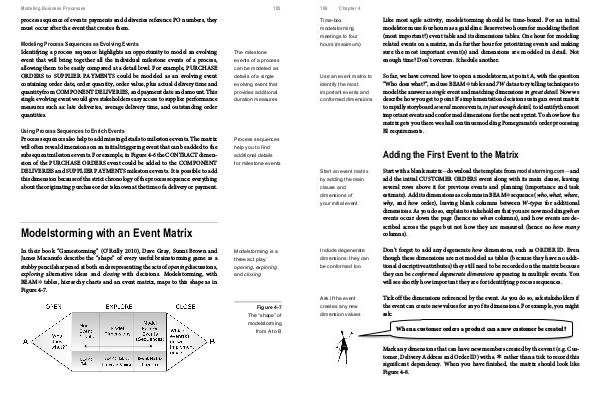

Modeling Business Processes 105 process sequence of events: payments and deliveries reference PO numbers, they must occur after the event that creates them. Modeling Process Sequences as Evolving Events Identifying a process sequence highlights an opportunity to model an evolving event that will bring together all the individual milestone events of a process, allowing them to be easily compared at a detail level. For example, PURCHASE ORDERS to SUPPLIER PAYMENTS could be modeled as an evolving event containing order date, order quantity, order value, plus actual delivery time and quantity from COMPONENT DELIVERIES, and payment date and amount. This single evolving event would give stakeholders easy access to supplier performance measures such as: late deliveries, average delivery time, and outstanding order quantities. Using Process Sequences to Enrich Events Process sequences also help to add missing details to milestone events. The matrix will often reveal dimensions on an initial triggering event that can be added to the subsequent milestone events. For example, in Figure 4-6 the CONTRACT dimen- sion of the PURCHASE ORDERS event could be added to the COMPONENT DELIVERIES and SUPPLIER PAYMENTS milestone events. It is possible to add this dimension because of the strict chronology of the process sequence: everything about the originating purchase order is known at the time of a delivery or payment. The milestone events of a process can be modeled as details of a single evolving event that provides additional duration measures Process sequences help you to find additional details for milestone events Modelstorming with an Event Matrix In their book “Gamestorming” (O’Reilly 2010), Dave Gray, Sunni Brown and James Macanufo describe the “shape” of every useful brainstorming game as a stubby pencil sharpened at both ends representing the acts of opening discussions, exploring alternative ideas and closing with decisions. Modelstorming, with BEAM ✲ tables, hierarchy charts and an event matrix, maps to this shape as in Figure 4-7. Modelstorming is a three act play: opening, exploring and closing Figure 4-7 The “shape” of modelstorming from A to B
