Construction— APAC— Myanmar— Commercial Buildings

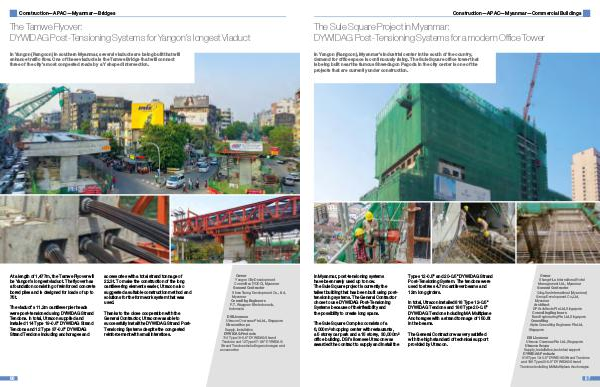

The Sule Square Project in Myanmar: DYWIDAG Post-Tensioning Systems for a modern Office Tower
In Yangon( Rangoon), Myanmar’ s industrial center in the south of the country, demand for office space is continuously rising. The Sule Square office tower that is being built near the famous Shwedagon Pagoda in the city center is one of the projects that are currently under construction.
In Myanmar, post-tensioning systems have been rarely used up to now. The Sule Square project is currently the tallest building that has been built using posttensioning systems. The General Contractor chose to use DYWIDAG Post-Tensioning Systems because of their flexibility and the possibility to create long spans.
The Sule Square Complex consists of a 6,000m ² shopping center with restaurants, a 5 storey car park and a 15 storey, 30,000m ² office building. DSI’ s licensee Utracon was awarded the contract to supply and install the
Types 12-0.5 " and 20-0.5 " DYWIDAG Strand Post-Tensioning System. The tendons were used to stress 4.7m cantilever beams and 12m long girders.
In total, Utracon installed 818 Type 12-0.5 " DYWIDAG Tendons and 186 Type 20-0.5 " DYWIDAG Tendons including MA Multiplane Anchorages with a strand tonnage of 150.8t in the beams.
The General Contractor was very satisfied with the high standard of technical support provided by Utracon.
Owner Shangri-La International Hotel Management Ltd., Myanmar General Contractor QingJian International( Myanmar) Group Development Co., Ltd, Myanmar Architect DP Architects Pte Ltd, Singapore Consulting Engineers Buro Engineering Pte Ltd, Singapore Consulting Alpha Consulting Engineers Pte Ltd, Singapore
DSI Licensee Utracon Overseas Pte Ltd., Singapore Utracon Scope Supply, installation, technical support DYWIDAG Products 818 Type 12-0.5 " DYWIDAG Strand Tendons and 186 Type 20-0.5 " DYWIDAG Strand Tendons including MA Multiplane Anchorages
