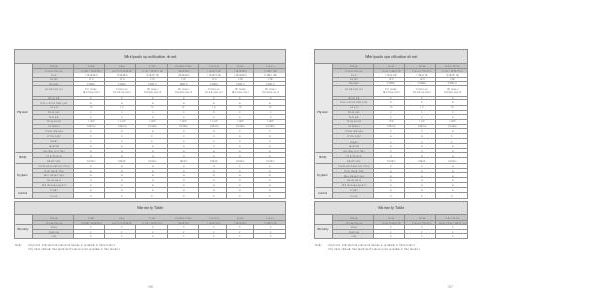

Whirlpools specification sheet
Physical
Safety
Hygiene
Control
Range Kubix Alive D'Arc Vignette Prime Fonte R Fonte Fusion
Product Name KUBIX 1800X800 ALIVE 1800X800 D'Arc 1800X1100 1900X900 1500X1500 1800X800 1400X1400
Size
Depth 1800X800
470 180X800
470 1800X1100
470 1900X900
470 1500X1500
470 1800X800
450 1400X1400
450
Material PMMA PMMA PMMA PMMA PMMA PMMA PMMA
Reinforcement PU Green
Reinforcement PU Green
Reinforcement PU Green
Reinforcement PU Green
Reinforcement PU Green
Reinforcement PU Green
Reinforcement PU Green
Reinforcement
Water jets 8 8 8 8 8 6 6
Slim and flat Water jets ● ● ● ● ● ● ●
Air jets 12 12 12 12 16 12 12
Back jets 4 4 4 4 0 4 4
Feet jets 0 0 0 0 0 0 0
Pump water 1.4HP 1.4HP 1.4HP 1.4HP 1.4HP 1.0HP 1.0HP
Air blower 0.90Hp 0.90Hp 0.90Hp 0.90Hp 0.90Hp 0.90Hp 0.90Hp
Chromotherapy ● ● ● ● ● X X
White Light X X X X X ● ●
Heater X X X X X X X
Headrest ● ● ● ● X ● ●
Overflow cum filler ● ● ● ● ● ● ●
3 Tier Testing ● ● ● ● ● ● ●
Steel Frame SS304 SS304 SS304 SS304 SS304 SS304 SS304
Sanitazation/System Clean ● ● ● ● ● X X
Food Grade Pipe ● ● ● ● ● ● ●
Bow shape Pipes ● ● ● ● ● ● ●
●
Level sensor ● ● ● ● ● ● Self drainage system ● ● ● ● ● ● ●
Digital ● ● ● ● ● ● ●
Cross X X X X X X X
Warranty Table
Warranty
Note:
Range Kubix Alive D'Arc Vignette Prime Fonte R Fonte Fusion
Product Name KUBIX 1800X800 ALIVE 1800X800 D'Arc 1800X1100 1900X900 1500X1500 1800X800 1400X1400
Body 5 5 5 5 5 5 5
Electrical 2 2 2 2 2 2 2
Jets 5 5 5 5 5 5 5
● Symbol indicate that particular feature is available in that product.
X Symbol indicate that particular Feature is not available in that product.
