D1

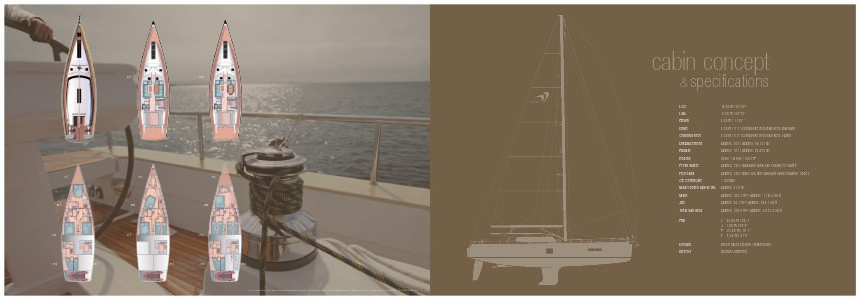

cabin concept
& specifications
D2
LOA
LWL
approx. 720 l (plus 300 liter passage tank) totalling 1,000 L
CE Certificate
A (ocean)
approx. 27.6 m
approx. 109.3 m² | approx. 1,176.5 sq ft
Jib
approx. 80.7 m² | approx. 868.7 sq ft
Total sail area
approx. 190.0 m² | approx. 2,045.2 sq ft
Rig
I 25.00 m | 80’1”
J 7.00 m | 22’9”
P 23.20 m | 76’1”
E 8.50 m | 27’9”
Design
Dixon Yacht Design | Watervision
Interior
E1
Fuel tank
Main
E3
approx. 725 l (passage tank can change to water)
Mast length above WL
C1
Volvo 110 kW / 150 HP
Fresh water
C3
approx. 10 t | approx. 22,045 lb
Engine
B2
approx. 30 t | approx. 66,137 lb
Ballast
B3
2.50 m | 8’2” (composite iron/lead keel) option
Displacement
B1
2.95 m | 9’7” (composite iron/lead keel) standard
Cruising keel
A2
5.25 m | 17’22”
Draft
A3
17.20 m | 56’43”
Beam
A1
19.30 m | 63'32"
Design Unlimited
C2
E1
E3
E2
All measurements and weights are approximate. Specifications, modifications and material can be changed without notice. Errors reserved.
