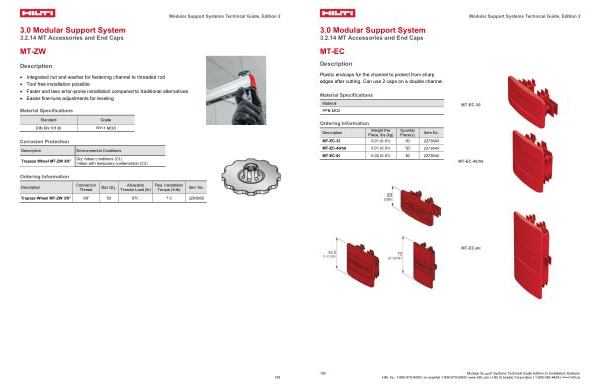

Modular Support Systems Technical Guide, Edition 2
3.0 Modular Support System
3.2.14 MT Accessories and End Caps
MT-ZW
Description
• Integrated nut and washer for fastening channel to threaded rod
• Tool free installation possible
• Faster and less error-prone installation compared to traditional alternatives
• Easier fine-tune adjustments for leveling
Material Specifications
Standard DIN EN 10130
Grade DD11 MOD
Corrosion Protection
Description
Trapeze Wheel MT-ZW 3 / 8”
Environmental Conditions
Dry indoor conditions( C1) Indoor with temporary condensation( C2)
Ordering Information |
|
|
|
|
|
Description |
Connection Thread |
Box Qty. |
Allowable Tension Load( lb) |
Req. Installation Torque( ft-lb) |
Item No. |
Trapeze Wheel MT-ZW 3 / 8” 3 / 8” 50 870 7.0 2293068
189
