Modular Support Systems Technical Guide, Edition 2
3.0 Modular Support System
3.2.13 MT Modular Plates

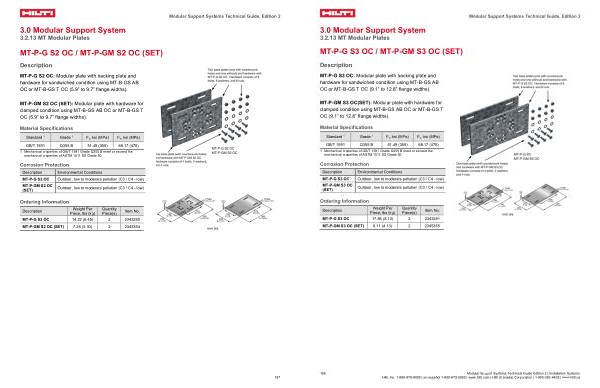

MT-P-G S2 OC / MT-P-GM S2 OC( SET)
Description
MT-P-G S2 OC: Modular plate with backing plate and hardware for sandwiched condition using MT-B-GS AB OC or MT-B-GS T OC( 5.9” to 9.7” flange widths).
MT-P-GM S2 OC( SET): Modular plate with hardware for clamped condition using MT-B-GS AB OC or MT-B-GS T OC( 5.9” to 9.7” flange widths).
Material Specifications
Standard 1 Grade 1 F y, ksi( MPa) F u, ksi( MPa)
GB / T 1591 Q355 B 51.49( 355) 68.17( 470)
1 Mechanical properties of GB / T 1591 Grade Q355 B meet or exceed the mechanical properties of ASTM 1011 SS Grade 50.
Corrosion Protection
Description |
Environmental Conditions |
MT-P-G S2 OC |
Outdoor, low to moderate pollution( C3 / C4- low) |
|
MT-P-GM S2 OC
( SET)
|
Outdoor, low to moderate pollution( C3 / C4- low) |
Ordering Information |
Description |
Weight Per
Piece, lbs( kg)
|
Quantity
Piece( s)
|
Item No. |
MT-P-G S2 OC |
14.22( 6.45) |
2 |
2343280 |
MT-P-GM S2 OC( SET) 7.28( 3.30) 2 2345354
187
