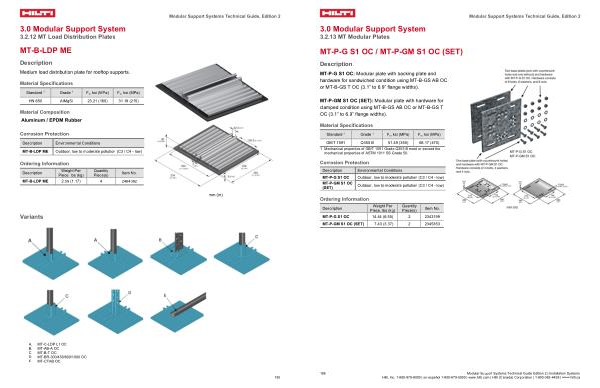

Modular Support Systems Technical Guide, Edition 2
3.0 Modular Support System
3.2.12 MT Load Distribution Plates
MT-B-LDP ME
Description
Medium load distribution plate for rooftop supports. Material Specifications
Standard 1 Grade 1 F y, ksi( MPa) F u, ksi( MPa) HN 650 AIMgSi 23.21( 160) 31.18( 215)
Material Composition Aluminum / EPDM Rubber
Corrosion Protection
Description
Environmental Conditions MT-B-LDP ME Outdoor, low to moderate pollution( C3 / C4- low)
Ordering Information
Description
Weight Per Piece, lbs( kg)
Quantity Piece( s)
Item No. MT-B-LDP ME 2.59( 1.17) 4 2464382
mm( in)
Variants
A. B. C. D. E.
MT-C-LDP L1 OC MT-AB-A OC MT-B-T OC MT-BR-300 / 450 / 600 / 1000 OC MT-CTAB OC
185
