Modular Support Systems Technical Guide, Edition 2
3.0 Modular Support System

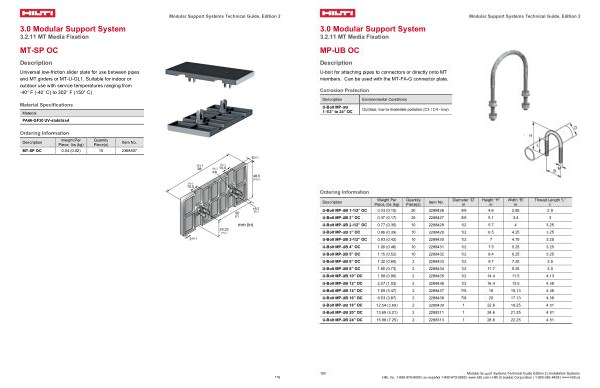

3.2.11 MT Media Fixation
MP-UB OC
Description
U-bolt for attaching pipes to connectors or directly onto MT members. Can be used with the MT-FA-G connector plate.
Corrosion Protection
Description
U-Bolt MP-UB 1-1 / 2” to 24” OC
Environmental Conditions
Outdoor, low to moderate pollution( C3 / C4- low) mm( in)
Ordering Information
Description
Weight Per Piece, lbs( kg)
Quantity Piece( s)
Item No.
Diameter“ D” in
Height“ H” in
Width“ B” in
Thread Length“ L” in
U-Bolt MP-UB 1-1 / 2” OC 0.33( 0.15) 20 2288426 3 / 8 4.6 2.85 2.9
U-Bolt MP-UB 2” OC 0.37( 0.17) 20 2288427 3 / 8 5.1 3.4 3 U-Bolt MP-UB 2-1 / 2” OC 0.77( 0.35) 10 2288428 1 / 2 5.7 4 3.25 U-Bolt MP-UB 3” OC 0.86( 0.39) 10 2288429 1 / 2 6.5 4.25 3.25 U-Bolt MP-UB 3-1 / 2” OC 0.93( 0.42) 10 2288430 1 / 2 7 4.75 3.25 U-Bolt MP-UB 4” OC 1.00( 0.46) 10 2288431 1 / 2 7.5 5.25 3.25 U-Bolt MP-UB 5” OC 1.15( 0.52) 10 2288432 1 / 2 8.4 6.25 3.25 U-Bolt MP-UB 6” OC 1.32( 0.60) 2 2288433 1 / 2 9.7 7.25 3.5 U-Bolt MP-UB 8” OC 1.60( 0.73) 2 2288434 1 / 2 11.7 9.25 3.5 U-Bolt MP-UB 10” OC 1.98( 0.90) 2 2288435 1 / 2 14.4 11.5 4.13 U-Bolt MP-UB 12” OC 2.27( 1.03) 2 2288436 1 / 2 16.4 13.5 4.38 U-Bolt MP-UB 14” OC 7.65( 3.47) 2 2288437 7 / 8 18 15.13 4.38 U-Bolt MP-UB 16” OC 8.53( 3.87) 2 2288438 7 / 8 20 17.13 4.38 U-Bolt MP-UB 18” OC 12.54( 5.69) 2 2288439 1 22.6 19.25 4.81 U-Bolt MP-UB 20” OC 13.69( 6.21) 2 2288311 1 24.6 21.25 4.81 U-Bolt MP-UB 24” OC 15.98( 7.25) 2 2288313 1 28.6 22.25 4.81
