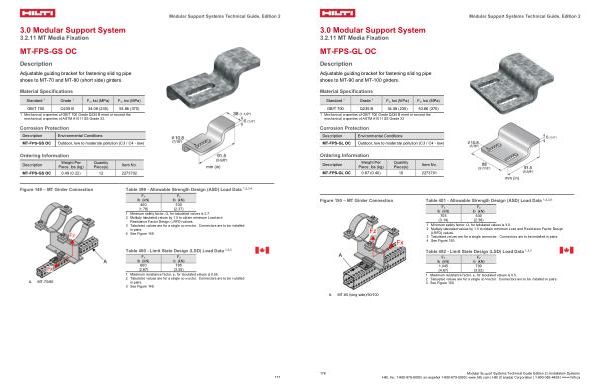

3.0 Modular Support System
3.2.11 MT Media Fixation
MT-FPS-GL OC
Description
Adjustable guiding bracket for fastening sliding pipe shoes to MT-90 and MT-100 girders.
Material Specifications
Standard 1 Grade 1 F y, ksi( MPa) F u, ksi( MPa)
GB / T 700 Q235 B 34.08( 235) 53.66( 370)
1 Mechanical properties of GB / T 700 Grade Q235 B meet or exceed the mechanical properties of ASTM A1011 SS Grade 33
Corrosion Protection
Description
Environmental Conditions MT-FPS-GL OC Outdoor, low to moderate pollution( C3 / C4- low)
Ordering Information |
Description |
Weight Per
Piece, lbs( kg)
|
Quantity
Piece( s)
|
Item No. |
MT-FPS-GL OC |
0.87( 0.40) |
10 |
2273701 |
mm( in)
Figure 150 – MT Girder Connection
Table 401- Allowable Strength Design( ASD) Load Data 1, 2, 3, 4
Fx Fz lb( kN) lb( kN)
705 530
( 3.14)
( 2.36) 1 Minimum safety factor, Ω, for tabulated values is 3.0. 2 Multiply tabulated values by 1.5 to obtain minimum Load and Resistance Factor Design
( LRFD) values. 3 Tabulated values are for a single connector. Connectors are to be installed in pairs. 4 See Figure 150.
Table 402- Limit State Design( LSD) Load Data 1, 2, 3
Fx Fz lb( kN) lb( kN)
1,045 790
( 4.67)
( 3.52) 1 Maximum resistance factor, φ, for tabulated values is 0.5. 2 Tabulated values are for a single connector. Connectors are to be installed in pairs. 3 See Figure 150.
A. MT-80( long side)/ 90 / 100
