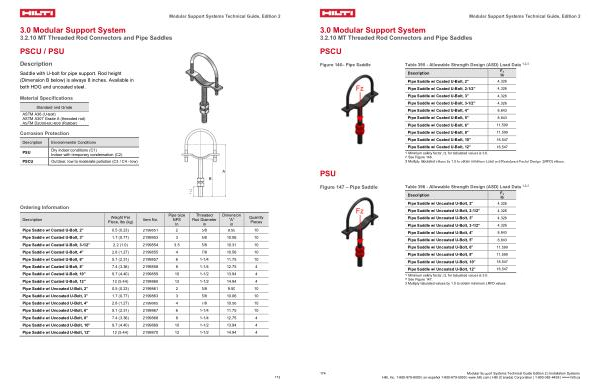

3.0 Modular Support System
3.2.10 MT Threaded Rod Connectors and Pipe Saddles
PSCU / PSU
Description
Saddle with U-bolt for pipe support. Rod height( Dimension B below) is always 8 inches. Available in both HDG and uncoated steel.
Material Specifications
Standard and Grade
ASTM A36( U-bolt) ASTM A307 Grade A( threaded rod) ASTM D2000-BC-608( Rubber)
Corrosion Protection
Modular Support Systems Technical Guide, Edition 2
Description Environmental Conditions
PSU
Dry indoor conditions( C1) Indoor with temporary condensation( C2)
PSCU Outdoor, low to moderate pollution( C3 / C4- low)
Ordering Information
Description
Weight Per Piece, lbs( kg)
Item No.
Pipe Size NPS In
Threaded Rod Diameter in
Dimension“ A” in
Pipe Saddle w / Coated U-Bolt, 2” 0.5( 0.23) 2199851 2 5 / 8 9.50 10
Pipe Saddle w / Coated U-Bolt, 3” 1.7( 0.77) 2199853 3 5 / 8 10.06 10 Pipe Saddle w / Coated U-Bolt, 3-1 / 2” 2.2( 1.0) 2199854 3.5 5 / 8 10.31 10 Pipe Saddle w / Coated U-Bolt, 4” 2.8( 1.27) 2199855 4 7 / 8 10.56 10 Pipe Saddle w / Coated U-Bolt, 6” 5.1( 2.31) 2199857 6 1-1 / 4 11.75 10 Pipe Saddle w / Coated U-Bolt, 8” 7.4( 3.36) 2199858 8 1-1 / 4 12.75 4 Pipe Saddle w / Coated U-Bolt, 10” 9.7( 4.40) 2199859 10 1-1 / 2 13.94 4 Pipe Saddle w / Coated U-Bolt, 12” 12( 5.44) 2199860 12 1-1 / 2 14.94 4 Pipe Saddle w / Uncoated U-Bolt, 2” 0.5( 0.23) 2199861 2 5 / 8 9.50 10 Pipe Saddle w / Uncoated U-Bolt, 3” 1.7( 0.77) 2199863 3 5 / 8 10.06 10 Pipe Saddle w / Uncoated U-Bolt, 4” 2.8( 1.27) 2199865 4 7 / 8 10.56 10 Pipe Saddle w / Uncoated U-Bolt, 6” 5.1( 2.31) 2199867 6 1-1 / 4 11.75 10 Pipe Saddle w / Uncoated U-Bolt, 8” 7.4( 3.36) 2199868 8 1-1 / 4 12.75 4 Pipe Saddle w / Uncoated U-Bolt, 10” 9.7( 4.40) 2199869 10 1-1 / 2 13.94 4 Pipe Saddle w / Uncoated U-Bolt, 12” 12( 5.44) 2199870 12 1-1 / 2 14.94 4
Quantity Pieces
173
