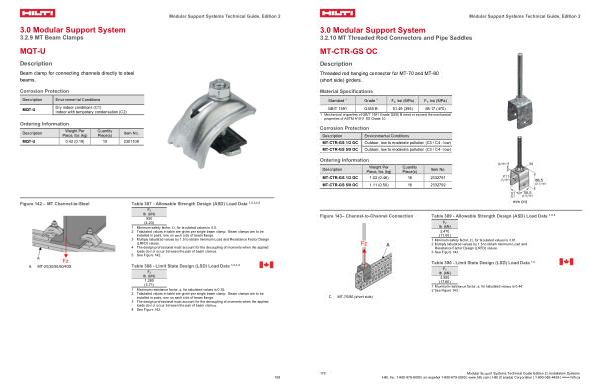

3.0 Modular Support System
3.2.9 MT Beam Clamps
MQT-U
Description
Beam clamp for connecting channels directly to steel beams.
Corrosion Protection
Description
MQT-U
Environmental Conditions
Dry indoor conditions( C1) Indoor with temporary condensation( C2)
Ordering Information
Description
Weight Per Piece, lbs( kg)
Quantity Piece( s)
Item No. MQT-U 0.42( 0.19) 10 2301108
Figure 142 – MT Channel-to-Steel
Table 387- Allowable Strength Design( ASD) Load Data 1, 2, 3, 4, 5
Fz lb( kN) 950( 4.23)
1 Minimum safety factor, Ω, for tabulated values is 4.0. 2 Tabulated values in table are given per single beam clamp. Beam clamps are to be installed in pairs, one on each side of beam flange. 3 Multiply tabulated values by 1.5 to obtain minimum Load and Resistance Factor Design
( LRFD) values. 4 The design professional must account for the decoupling of moments when the applied loads do not occur between the pair of beam clamps. 5 See Figure 142.
A. MT-20 / 30 / 50 / 60 / 40D
Table 388- Limit State Design( LSD) Load Data 1, 2, 3, 4
Fz lb( kN) 1,280( 5.71)
1 Maximum resistance factor, φ, for tabulated values is 0.35. 2 Tabulated values in table are given per single beam clamp. Beam clamps are to be installed in pairs, one on each side of beam flange.
3 The design professional must account for the decoupling of moments when the applied loads do not occur between the pair of beam clamps.
4 See Figure 142.
