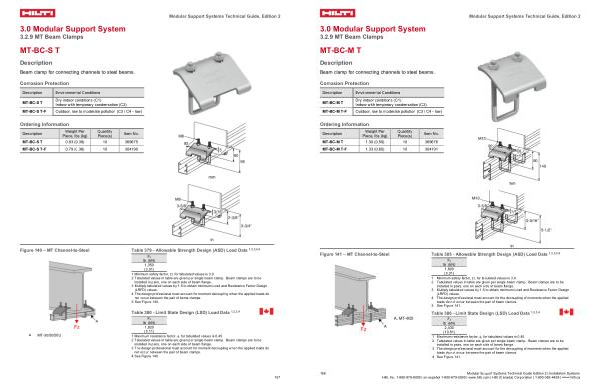

Modular Support Systems Technical Guide, Edition 2
3.0 Modular Support System
3.2.9 MT Beam Clamps
MT-BC-S T
Description
Beam clamp for connecting channels to steel beams. Corrosion Protection
Description Environmental Conditions
MT-BC-S T
Dry indoor conditions( C1) Indoor with temporary condensation( C2)
MT-BC-S T-F Outdoor, low to moderate pollution( C3 / C4- low)
Ordering Information
Description
Weight Per Piece, lbs( kg)
Quantity Piece( s)
Item No. MT-BC-S T 0.83( 0.38) 10 369675 MT-BC-S T-F 0.79( 0.36) 10 304190
mm
in
Figure 140 – MT Channel-to-Steel
Table 379- Allowable Strength Design( ASD) Load Data 1, 2, 3, 4, 5
Fz lb( kN) 1,350( 6.01)
1 Minimum safety factor, Ω, for tabulated values is 3.0. 2 Tabulated values in table are given per single beam clamp. Beam clamps are to be installed in pairs, one on each side of beam flange. 3 Multiply tabulated values by 1.5 to obtain minimum Load and Resistance Factor Design
( LRFD) values. 4 The design professional must account for moment decoupling when the applied loads do not occur between the pair of bema clamps. 5 See Figure 140.
A. MT-30 / 50 / 50U
Table 380- Limit State Design( LSD) Load Data 1, 2, 3, 4
Fz lb( kN) 1,820( 8.11)
1 Maximum resistance factor, φ, for tabulated values is 0.45. 2 Tabulated values in table are given per single beam clamp. Beam clamps are to be installed in pairs, one on each side of beam flange.
3 The design professional must account for moment decoupling when the applied loads do not occur between the pair of beam clamps.
4 See Figure 140.
167
