3.0 Modular Support System
3.2.9 MT Beam Clamps
MT-BC-GS T OC
Description
Girder beam clamp – MT-70 and MT-80. Corrosion Protection
Description
Environmental Conditions MT-BC-GS T OC Outdoor, low to moderate pollution( C3 / C4- low)
Ordering Information
Description
Weight Per Piece, lbs( kg)
Quantity Piece( s)
Item No. MT-BC-GS T OC 2.81( 1.28) 12 2273587
mm( in)

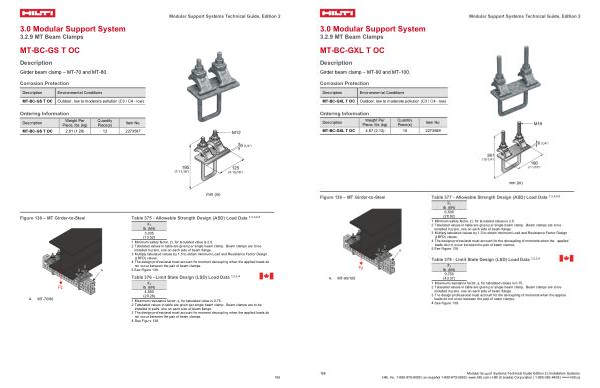

Figure 138 – MT Girder-to-Steel
Table 375- Allowable Strength Design( ASD) Load Data 1, 2, 3, 4, 5
Fz lb( kN) 3,035( 13.52)
1 Minimum safety factor, Ω, for tabulated value is 2.0. 2 Tabulated values in table are given per single beam clamp. Beam clamps are to be installed in pairs, one on each side of beam flange. 3 Multiply tabulated values by 1.5 to obtain minimum Load and Resistance Factor Design
( LRFD) values. 4 The design professional must account for moment decoupling when the applied loads do not occur between the pair of beam clamps. 5 See Figure 138.
Table 376- Limit State Design( LSD) Load Data 1, 2, 3, 4
A. MT-70 / 80
Fz lb( kN) 4,550( 20.28)
1 Maximum resistance factor, φ, for tabulated value is 0.75. 2 Tabulated values in table are given per single beam clamp. Beam clamps are to be installed in pairs, one on each side of beam flange.
3 The design professional must account for moment decoupling when the applied loads do not occur between the pair of beam clamps.
4 See Figure 138.
