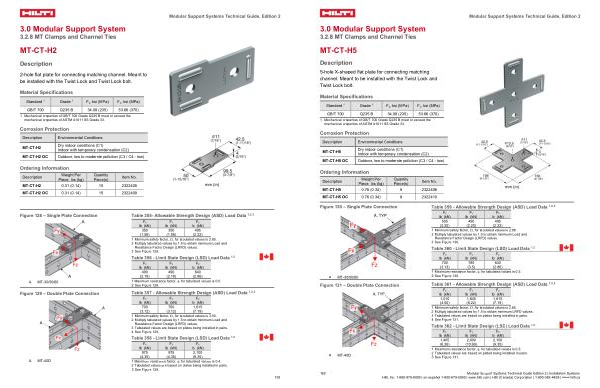

Modular Supports System Product Technical Guide June 2026 | Página 161

Modular Support Systems Technical Guide, Edition 2
3.0 Modular Support System
3.2.8 MT Clamps and Channel Ties
MT-CT-H5
Description
5-hole X-shaped flat plate for connecting matching channel. Meant to be installed with the Twist Lock and Twist Lock bolt.
Material Specifications
Standard 1 Grade 1 F y, ksi( MPa) F u, ksi( MPa)
GB / T 700 Q235 B 34.08( 235) 53.66( 370)
1 Mechanical properties of GB / T 700 Grade Q235 B meet or exceed the mechanical properties of ASTM A1011 SS Grade 33.
Corrosion Protection
Description
Environmental Conditions
MT-CT-H5
Dry indoor conditions( C1)
Indoor with temporary condensation( C2)
MT-CT-H5 OC
Outdoor, low to moderate pollution( C3 / C4- low)
Ordering Information
Description
Weight Per
Piece, lbs( kg)
Quantity
Piece( s)
Item No.
MT-CT-H5
0.76( 0.34)
8
2322406
MT-CT-H5 OC 0.76( 0.34) 8 2322410
mm( in)
Figure 130 – Single Plate Connection
A. MT-30 / 50 / 60 Figure 131 – Double Plate Connection
A. MT-40D
Table 359- Allowable Strength Design( ASD) Load Data 1, 2, 3
Fx lb( kN)
Fy lb( kN)
Fz lb( kN)
505
( 2.25)
490
( 2.20)
495
( 2.22)
1 Minimum safety factor, Ω, for tabulated values is 2.68.
2 Multiply tabulated values by 1.5 to obtain minimum Load and
Resistance Factor Design( LRFD) values.
3 See Figure 130.
Table 360- Limit State Design( LSD) Load Data 1, 2
Fx lb( kN)
Fy lb( kN)
Fz lb( kN)
700
( 3.13)
785
( 3.5)
640
( 2.86)
1 Maximum resistance factor, φ, for tabulated values is 0.5.
2 See Figure 130.
Table 361- Allowable Strength Design( ASD) Load Data 1, 2, 3
Fx lb( kN)
Fy lb( kN)
Fz lb( kN)
1,010
( 4.50)
1,845
( 8.22)
1,615
( 7.19)
1 Minimum safety factor, Ω, for tabulated values is 2.65.
2 Multiply tabulated values by 1.5 to obtain minimum LRFD values.
3 Tabulated values are based on plates being installed in pairs.
4 See Figure 131.
Table 362- Limit State Design( LSD) Load Data 1, 2
Fx lb( kN)
Fy lb( kN)
Fz lb( kN)
1,405
( 6.26)
2,400
( 10.69)
2,100
( 9.35)
1 Maximum resistance factor, φ, for tabulated values is 0.5.
2 Tabulated values are based on plated being installed in pairs.
3 See Figure 131.
