METAR TRAY
METAR TRAY

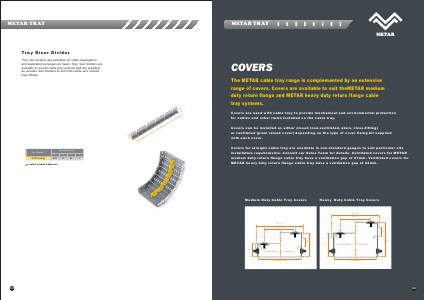

Tray Riser Divider
Tray riser dividers are available for cable segregation
and separation purposes on risers. Tray riser dividers are
available to suit all cable tray sections and are supplied
as variable riser dividers to suit both inside and outside
riser fittings.
COVERS
The METAR cable tray range is complemented by an extensive
range of covers. Covers are available to suit theMETAR medium
duty return flange and METAR heavy duty return flange cable
tray systems.
F
Covers are used with cable tray to provide mechanical and environmental protection
for cables and other items installed on the cable tray.
L
H
T
Part Number
MT/DIV/VR/
Dimensions mm
L
H
F
T
465
47
20
1
= Select a Finish & Material
Covers can be installed as either closed (non-ventilated, plain, close-fitting)
or ventilated (plain raised cover) depending on the type of cover fixing kit supplied
with each cover.
Covers for straight cable tray are available in non-standard gauges to suit particular site
installation requirements. Consult our Sales Team for details. Ventilated covers for METAR
medium duty return flange cable tray have a ventilation gap of 21mm. Ventilated covers for
METAR heavy duty return flange cable tray have a ventilation gap of 24mm.
Medium Duty Cable Tray Covers
Heavy Duty Cable Tray Covers
W + 11
W - 25
W + 11
W - 25
20
85
20
57
3 2
Non-Ventilated
Non-Ventilated
Ventilated
Ventilated
Tray Width W
23
57
Tray Width W
24
