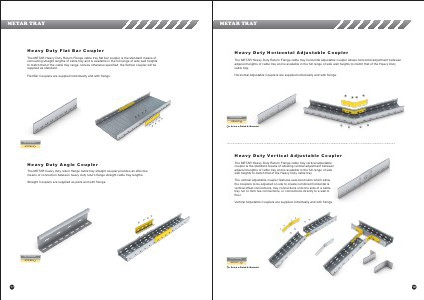

METAR TRAY
Heavy Duty Flat Bar Coupler
METAR TRAY
Heavy Duty Horizontal Adjustable Coupler
The METAR Heavy Duty Return Flange cable tray flat bar coupler is the standard means of
connecting straight lengths of cable tray and is available in the full range of side wall heights
to match that of the cable tray range. Unless otherwise specified, the flat bar coupler will be
supplied as standard.
The METAR Heavy Duty Return Flange cable tray horizontal adjustable coupler allows horizontal adjustment between
adjacent lengths of cable tray and is available in the full range of side wall heights to match that of the Heavy Duty
cable tray.
Flat Bar Couplers are supplied individually and with fixings.
Horizontal Adjustable Couplers are supplied individually and with fixings.
Part Number
HR/HAC/
= Select a Finish & Material
Part Number
MT/FBC/
Heavy Duty Vertical Adjustable Coupler
Heavy Duty Angle Coupler
The METAR heavy duty return flange cable tray straight coupler provides an effective
means of connection between heavy duty return flange straight cable tray lengths.
Straight Couplers are supplied as pairs and with fixings.
The METAR Heavy Duty Return Flange cable tray vertical adjustable
coupler is the standard means of allowing vertical adjustment between
adjacent lengths of cable tray and is available in the full range of side
wall heights to match that of the Heavy Duty cable tray.
The vertical adjustable coupler features easi-bend slots which allow
the couplers to be adjusted on site to create combined horizontal &
vertical offset connections, tray connections onto the side of a cable
tray run to form tee connections, or connections directly to a wall or
floor.
Vertical Adjustable Couplers are supplied individually and with fixings.
Part Number
MT/FBC/
Part Number
HR
