METAR TRAY
METAR TRAY

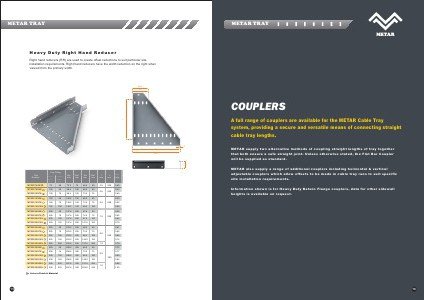

Heavy Duty Right Hand Reducer
Right hand reducers (RR) are used to create offset reductions to suit particular site
installation requirements. Right hand reducers have the width reduction on the right when
viewed from the primary width.
Ws1
Ws
COUPLERS
A full range of couplers are available for the METAR Cable Tray
system, providing a secure and versatile means of connecting straight
cable tray lengths.
L
T
METAR supply two alternative methods of coupling straight lengths of tray together
that both ensure a safe straight joint. Unless otherwise stated, the Flat Bar Coupler
will be supplied as standard.
Wp
Wp1
H
Tray Fitting
Part
Number
Primary
width
mm
Secondary
Width
mm
Wp
mm
Wp1
mm
Ws
mm
Ws1
mm
T
mm
L
mm
Weight
0.9
250
0.40
0.9
250
0.9
250
METAR also supply a range of additional couplers including horizontal & vertical
adjustable couplers which allow offsets to be made in cable tray runs to suit specific
site installation requirements.
(kg)
MT/RR/75/50/
75
50
73.2
75
48.2
50
MT/RR/100/50/
100
50
98.2
100
48.2
50
MT/RR/100/75/
100
75
98.2
100
73.2
75
MT/RR/150/50/
150
50
148.2
150
48.2
50
MT/RR/150/75/
150
75
148.2
150
73.2
75
MT/RR/150/100/
150
100
148.2
150
98.2
100
0.58
MT/RR/200/50/
200
50
197.6
200
47.6
50
0.56
MT/RR/200/75/
200
75
197.6
200
72.6
75
MT/RR/200/100/
200
100
197.6
200
97.6
100
MT/RR/200/150/
200
150
197.6
200
147.6
150
0.70
MT/RR/225/50/
225
50
223.2
225
48.2
50
0.61
MT/RR/225/75/
225
75
223.2
225
73.2
75
MT/RR/225/100/
225
100
223.2
225
98.2
100
MT/RR/225/150/
225
150
223.2
225
148.2
150
MT/RR/225/200/
225
200
222.6
225
197.6
200
MT/RR/300/50/
300
50
298.2
300
48.2
50
0.72
MT/RR/300/75/
300
75
298.2
300
73.2
75
0.77
MT/RR/300/100/
300
100
298.2
300
98.2
100
MT/RR/300/150/
300
150
298.2
300
148.2
150
MT/RR/300/200/
300
200
297.6
300
197.6
200
MT/RR/300/225/
300
225
297.6
300
222.6
225
0.43
0.49
Information shown is for Heavy Duty Return Flange couplers, data for other sidewall
heights is available on request.
0.50
1.2
0.9
250
0.56
0.62
0.64
0.66
250
0.68
0.74
1.2
0.78
0.9
250
1.2
0.80
0.84
0.88
1.20
= Select a Finish & Material
15
16
