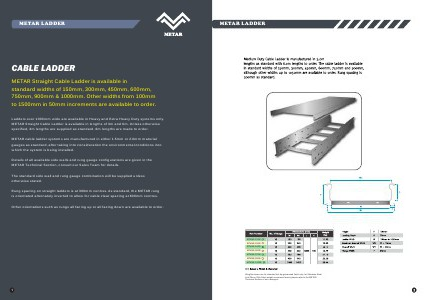

METAR LADDER
METAR LADDER
CABLE LADDER
METAR Straight Cable Ladder is available in
standard widths of 150mm, 300mm, 450mm, 600mm,
750mm, 900mm & 1000mm. Other widths from 100mm
to 1500mm in 50mm increments are available to order.
Ladders over 1000mm wide are available in Heavy and Extra Heavy Duty systems only.
METAR Straight Cable Ladder is available in lengths of 3m and 6m. Unless otherwise
specified, 3m lengths are supplied as standard. 6m lengths are made to order.
METAR cable ladder systems are manufactured in either 1.5mm or 2.0mm material
gauges as standard, after taking into consideration the environmental conditions into
which the system is being installed.
Details of all available side walls and rung gauge configurations are given in the
METAR Technical Section, consult our Sales Team for details.
The standard side wall and rung gauge combination will be supplied unless
otherwise stated.
Rung spacing on straight ladders is at 300mm centres. As standard, the METAR rung
is orientated alternately inverted to allow for cable cleat spacing at 600mm centres.
Other orientations such as rungs all facing up or all facing down are available to order.
MT4/ML3/150/
MT4/ML3/300/
MT4/ML3/450/
MT4/ML3/600/
MT4/ML3/750/
MT4/ML3/900/
MT4/ML3/1000/
Weights shown are for standard hot dip galvanised finish only, for Stainless Steel
and Silicon Rich Steel weight conversion factors please refer to the METAR
Technical Section of our catalogue.
