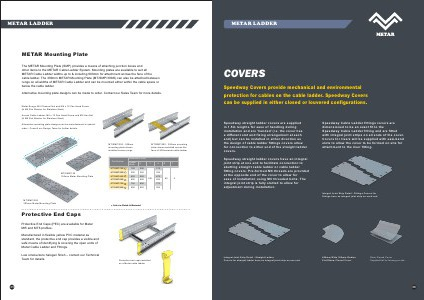

METAR Mounting Plate
The METAR Mounting Plate (SMP) provides a means of attaching junction boxes and
other items to the METAR Cable Ladder System. Mounting plates are available to suit all
METAR Cable Ladder widths up to & including 900mm for attachment across the face of the
cable ladder. The 300mm METAR Mounting Plate (MT/SMP/300/#) can also be attached between
rungs on all widths of METAR Cable Ladder and can be mounted either within the cable space or
below the cable ladder.
COVERS
Speedway Covers provide mechanical and environmental
protection for cables on the cable ladder. Speedway Covers
can be supplied in either closed or louvered configurations.
Alternative mounting plate designs can be made to order. Contact our Sales Team for more details.
Metar Rungs: M6 Channel Nut and M6 x 12 Pan Head Screw
(& M6 Flat Washer for Stainless Steel)
Across Cable Ladder: M6 x 12 Pan Head Screw and M6 Hex Nut
(& M6 Flat Washer for Stainless Steel)
Alternative mounting plate designs can be manufactured to special
order - Consult our Design Team for further details.
B
X
MT/SMP/300 - 300mm
mounting plate shown
installed across rungs
MT/SMP/300 - 300mm mounting
plate shown installed across the
face of 300mmwide cable ladder
Speedway straight ladder covers are supplied
in 1.5m lengths for ease of handling during
installation and are ‘handed’ (i.e. the cover has
a different slot and fixing arrangement at each
end) but can be installed in either direction as
the design of cable ladder fittings covers allow
for connection to either end of the straight ladder
covers.
Speedway Cable Ladder fittings covers are
dimensioned to be an exact fit to the
Speedway Cable Ladder fitting and are fitted
with integral joint strips on all ends of the cover.
Covers for risers will be supplied with easi-bend
slots to allow the cover to be formed on site for
attachment to the riser fitting.
A
Dimensions (mm)
Part Number
200
175
300
350
325
MT/SMP/450/
450
500
600
600
MT/SMP/750/
750
800
775
MT/SMP/900/
MT/SMP/150
150mm Metar Mounting Plate
150
MT/SMP/300/
MT/SMP/600/
T
Ladder
Width
MT/SMP/150/
Y
900
950
925
X
Y
100
A
475
625
B
60
T
2
Speedway straight ladder covers have an integral
joint strip at one end to facilitate connection to
abutting straight cable ladder or cable ladder
fitting covers. Pre-formed M6 threads are provided
at the opposite end of the cover to allow for
ease of installation using M6 threaded bolts. The
integral joint strip is fully slotted to allow for
adjustment during installation.
Integral Joint Strip Detail - Fittings Covers for
fittings have an integral joint strip on each end
MT/SMP/300
300mm Metar Mounting Plate
= Select a Finish & Material
Protective End Caps
Protective End Caps (PEC) are available for Metar
Mt5 and MT6 profiles.
Manufactured in flexible yellow PVC material as
standard, the protective end cap provides a visible and
safe means of identifying & covering the open ends of
Metar Cable Ladder and Fittings.
Low smoke/zero halogen finish – contact our Technical
Team for details.
35
Protective end caps installed
on a Metar cable ladder
Integral Joint Strip Detail - Straight Ladder
Covers for straight ladder have an integral joint strip on one end
600mm Wide 300mm Radius
Flat Elbow Closed Cover
Riser Closed Cover
Supplied flat for forming on site
