METAR LADDER
METAR LADDER

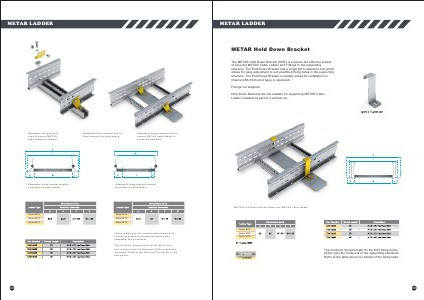

METAR Hold Down Bracket
The METAR Hold Down Bracket (HDB) is a simple but effective means
of securing METAR Cable Ladder and Fittings to the supporting
structure. The Hold Down Bracket has a single M10 clearance slot which
allows for easy adjustment to suit predrilled fixing holes in the supporting
structure. The Hold Down Bracket is equally suited for installation on
channel (BS 6946 strut type) or steelwork.
Fixings not supplied.
Hold Down Brackets are not suitable for supporting METAR Cable
Ladder installed as part of a vertical run.
Adaptable fixing bracket
used to secure METAR
cable ladder to channel
Adaptable fixing bracket located
externally on cable ladder
Adaptable fixing bracket can be
fitted internally to save space
Adaptable fixing bracket used to
secure METAR cable ladder to
structural steelwork
Adaptable fixing bracket located
internally on cable ladder
METAR hold down bracket fitted onto METAR cable ladder
Metar MT4
Metar MT4
Metar MT5
Metar MT5
Metar MT6
Metar MT6
Metar MT4
These tables give the recommended fixing hole
centres and general dimensions when using
adaptable fixing brackets.
The minimum thread length for the M10 fixing
bolt is 22mm plus the thickness of the supporting
steelwork. Refer to the table (left) for details of the
fixing bolts.
29
Metar MT5
Metar MT6
MT
The minimum thread length for the M10 fixing bolt is
22mm plus the thickness of the supporting steelwork.
Refer to the table above for details of the fixing bolts.
30
