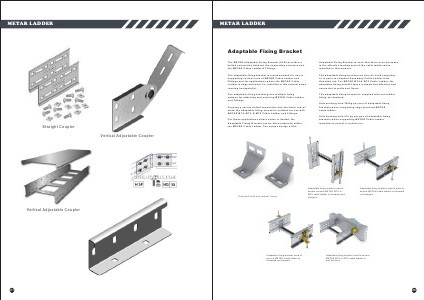

Adaptable Fixing Bracket
The METAR Adaptable Fixing Bracket (AFB) provides a
bolted connection between the supporting structure and
the METAR Cable Ladder & Fittings.
Adaptable Fixing Bracket is such that there is no decrease
in the effective loading area of the cable ladder when
installed in this manner.
The adaptable fixing bracket is recommended for use in
supporting vertical runs of METAR Cable Ladder and
Fittings and for applications where the METAR Cable
Ladder is edge-mounted (i.e. installed in the vertical plane
running horizontally).
The adaptable fixing bracket can also be used singularly
or in pairs to suspend Speedway Cable Ladder from
threaded rod. For METAR MT4 & MT5 Cable Ladder, the
adaptable fixing bracket forms a simple but effective end
connector to walls and floors.
The adaptable fixing bracket gives multiple fixing
options for attaching and securing METAR Cable Ladder
and Fittings.
The adaptable fixing bracket is supplied with one ladder
fixing as standard.
Forming a secure bolted connection into the lower row of
slots, the adaptable fixing bracket is suitable for use with
METAR MT4, MT5, & MT6 Cable Ladder and Fittings.
For those applications where space is limited, the
Adaptable Fixing Bracket can be fitted internally within
the METAR Cable Ladder. The unique design of the
Straight Coupler
Safe working load 300kg per pair of adaptable fixing
brackets when supporting edge mounted METAR
cable ladder.
Safe working load 215 kg per pair of adaptable fixing
brackets when supporting METAR Cable Ladder
installed as part of a vertical run.
Vertical Adjustable Coupler
Supplied with one ladder fixing
Adaptable fixing bracket used to
secure vertical METAR MT4 or
MT5 cable ladder to threaded rod
hangers
Adaptable fixing bracket used in pairs to
secure METAR cable ladder to threaded
rod hangers
Vertical Adjustable Coupler
