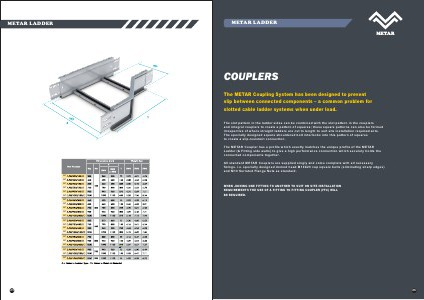

COUPLERS
The METAR Coupling System has been designed to prevent
slip between connected components – a common problem for
slotted cable ladder systems when under load.
The slot pattern in the ladder sides can be combined with the slot pattern in the couplers
and integral couplers to create a pattern of squares; these square patterns can also be formed
irrespective of where straight ladders are cut to length to suit site installation requirements.
The specially designed square shouldered bolt interlocks into this pattern of squares
to create a slip-resistant connection.
The METAR Coupler has a profile which exactly matches the unique profile of the METAR
Ladder (& Fitting side walls) to give a high performance connection which securely holds the
connected components together.
All standard METAR Couplers are supplied singly and come complete with all necessary
fixings. i.e. specially designed domed head M10X20 cup square bolts (eliminating sharp edges)
and M10 Serrated Flange Nuts as standard.
MT
MT
MT
MT
MT
MT
WHEN JOINING ONE FITTING TO ANOTHER TO SUIT ON SITE INSTALLATION
REQUIREMENTS THE USE OF A FITTING TO FITTING COUPLER (FFC) WILL
BE REQUIRED.
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
