METAR LADDER
METAR LADDER

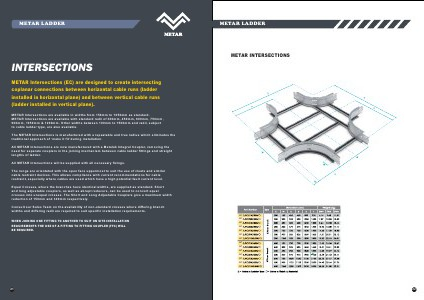

METAR INTERSECTIONS
INTERSECTIONS
METAR Intersections (EC) are designed to create intersecting
coplanar connections between horizontal cable runs (ladder
installed in horizontal plane) and between vertical cable runs
(ladder installed in vertical plane).
METAR Intersections are available in widths from 150mm to 1050mm as standard.
METAR Intersections are available with standard radii of 300mm, 450mm, 600mm, 750mm,
900mm, 1050mm & 1200mm. Other widths between 100mm to 1500mm and radii, subject
to cable ladder type, are also available.
The METAR Intersections is manufactured with a repeatable and true radius which eliminates the
traditional approach of ‘make it fit’ during installation.
All METAR Intersections are now manufactured with a Metalok Integral Coupler, removing the
need for separate couplers in the joining mechanism between cable ladder fittings and straight
lengths of ladder.
All METAR Intersections will be supplied with all necessary fixings.
The rungs are orientated with the open face uppermost to suit the use of cleats and similar
cable restraint devices. This allows compliance with current recommendations for cable
restraint, especially where cables are used which have a high potential fault current level.
Equal Crosses, where the branches have identical widths, are supplied as standard. Short
and long adjustable couplers, as well as abrupt reducers, can be used to convert equal
crosses into unequal crosses. The Short and Long Adjustable Couplers give a maximum width
reduction of 150mm and 300mm respectively.
Consult our Sales Team on the availability of non-standard crosses where differing branch
widths and differing radii are required to suit specific installation requirements.
MT
WHEN JOINING ONE FITTING TO ANOTHER TO SUIT ON SITE INSTALLATION
REQUIREMENTS THE USE OF A FITTING TO FITTING COUPLER (FFC) WILL
BE REQUIRED.
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
21
22
