METAR LADDER
METAR LADDER
MT
MT

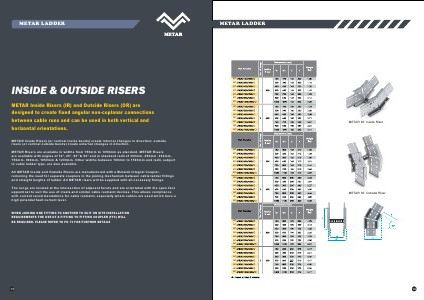

INSIDE & OUTSIDE RISERS
MT
MT
MT
MT
MT
METAR Inside Risers (IR) and Outside Risers (OR) are
designed to create fixed angular non-coplanar connections
between cable runs and can be used in both vertical and
horizontal orientations.
MT
MT
MT
MT
MT
METAR 30˚ Inside Riser
MT
MT
METAR Inside Risers (or vertical inside bends) create internal changes in direction; outside
risers (or vertical outside bends) create external c hanges in direction.
MT
METAR Risers are available in widths from 150mm to 1050mm as standard. METAR Risers
are available with angles of 30°, 45°, 60° & 90° and in standard radii of 300mm, 450mm, 600mm,
750mm, 900mm, 1050mm & 1200mm. Other widths between 100mm to 1500mm and radii, subject
to cable ladder type, are also available.
MT
MT
MT
MT
MT
All METAR Inside and Outside Risers are manufactured with a Metalok Integral Coupler,
removing the need for separate couplers in the joining mechanism between cable ladder fittings
and straight lengths of ladder. All METAR risers will be supplied with all necessary fixings.
MT
MT
MT
MT
The rungs are located at the intersection of adjacent facets and are orientated with the open face
uppermost to suit the use of cleats and similar cable restraint devices. This allows compliance
with current recommendations for cable restraint, especially where cables are used which have a
high potential fault current level.
WHEN JOINING ONE FITTING TO ANOTHER TO SUIT ON SITE INSTALLATION
REQUIREMENTS THE USE OF A FITTING TO FITTING COUPLER (FFC) WILL
BE REQUIRED. PLEASE REFER TO PG 73 FOR FURTHER DETAILS
MT
MT
METAR 30˚ Outside Riser
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
MT
13
14
