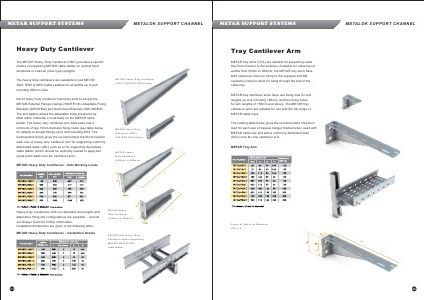

METAR SUPPORT SYSTEMS
METALOK SUPPORT CHANNEL
Heavy Duty Cantilever
Each Heavy Duty Cantilever has fixing slots to accept the
METAR External Flange Clamps (SW/EFC/#), Adaptable Fixing
Brackets (SW/AFB/#) and Hold Down Brackets (SW-/HDB/#).
The slot pattern allows the adaptable fixing bracket to be
fitted either internally or externally on the METAR cable
ladder. The heavy duty cantilever arm back plate has a
minimum of two 15mm diameter fixing holes (see table below
for details) to accept fixings up to and including M14. The
loading table below gives the recommended maximum load for
each size of heavy duty cantilever arm for supporting uniformly
distributed loads (UDL) such as or for supporting Speedway
cable ladder (which should be uniformly loaded to apply two
equal point loads onto the cantilever arm).
METALOK SUPPORT CHANNEL
Tray Cantilever Arm
The METAR Heavy Duty Cantilever (HDC) provides a specific
means of supporting METAR cable ladder on vertical fixed
structures or channel (strut type) uprights.
The heavy duty cantilevers are available to suit METAR
SW4, SW5 & SW6 Cable Ladders for all widths up to and
including 900mm wide.
METAR SUPPORT SYSTEMS
METAR Heavy Duty Cantilever
(HDC) (SW/HDC/600 shown)
METAR tray arms (TCA) are suitable for supporting cable
tray from channel or flat surfaces. Available for cable tray of
widths from 50mm to 900mm, the METAR tray arms have
M10 clearance holes for fixing to the supports and M6
clearance holes to allow for fixing through the bed of the
cable tray.
METAR tray cantilever arms have one fixing hole for arm
lengths up to & including 100mm, and two fixing holes
for arm lengths of 150mm and above. The METAR tray
cantilever arms are suitable for use with the full range of
METAR cable trays.
METAR Heavy Duty
Cantilever (HDC)
(SW/HDC/300 shown)
The loading table below gives the recommended maximum
load for each size of trapeze hanger bracket when used with
METAR cable tray and with a uniformly distributed load
(UDL) onto the tray cantilever arm.
METAR Tray Arm
METAR Heavy
Duty Cantilever
(450mm to 900mm)
METAR Heavy Duty Cantilevers - Safe Working Loads
Heavy Duty Cantilevers with non-standard arm lengths and
alternative fixing slot configurations are available – consult
our Design Team for further information.
Installation dimensions are given in the following table.
METAR Heavy Duty Cantilevers - Installation Details
21
METAR Heavy
Duty Cantilever
(150mm to 300mm)
Factor of Safety for Maximum
UDL = 3
SW/HDC/600 Heavy Duty
Cantilever shown supporting
METAR SW5/SL/600
cable ladder
22
