METAR SUPPORT SYSTEMS
METALOK SUPPORT CHANNEL

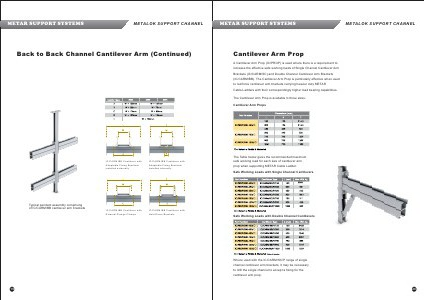

Back to Back Channel Cantilever Arm (Continued)
METAR SUPPORT SYSTEMS
METALOK SUPPORT CHANNEL
Cantilever Arm Prop
A Cantilever Arm Prop (IC/PROP) is used where there is a requirement to
increase the effective safe working loads of Single Channel Cantilever Arm
Brackets (IC/CARM/SC) and Double Channel Cantilever Arm Brackets
(IC/CARM/BB). The Cantilever Arm Prop is particularly effective when used
to reinforce cantilever arm brackets carrying heavier duty METAR
Cable Ladders with their correspondingly higher load bearing capabilities.
The Cantilever Arm Prop is available in three sizes:
Cantilever Arm Props
The Table below gives the recommended maximum
IC/CARM/BB Cantilever with
Adaptable Fixing Brackets
installed externally
IC/CARM/BB Cantilever with
Adaptable Fixing Brackets
installed internally
safe working load for each size of cantilever arm
prop when supporting METAR Cable Ladder.
Safe Working Loads with Single Channel Cantilevers
Typical pendant assembly comprising
of IC/CARM/BB cantilever arm brackets
IC/CARM/BB Cantilever with
External Flange Clamps
IC/CARM/BB Cantilever with
Hold Down Brackets
Safe Working Loads with Double Channel Cantilevers
Where used with the IC/CARM/SC/P range of single
channel cantilever arm brackets, it may be necessary
to drill the single channel to accept a fixing for the
cantilever arm prop.
19
20
