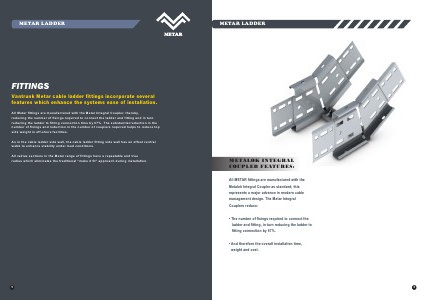

METAR LADDER
METAR LADDER
FITTINGS
Vantrunk Metar cable ladder fittings incorporate several
features which enhance the systems ease of installation.
All Metar fittings are manufactured with the Metar Integral Coupler, thereby,
reducing the number of fixings required to connect the ladder and fitting and in turn
reducing the ladder to fitting connection time by 67%. The substantial reduction in the
number of fixings and reduction in the number of couplers required helps to reduce top
side weight in off-shore facilities.
As in the cable ladder side wall, the cable ladder fitting side wall has an offset central
webb to enhance stability under load conditions.
All radius sections in the Metar range of fittings have a repeatable and true
radius which eliminates the traditional “make it fit” approach during installation.
METALOK INTEGRAL
COUPLER FEATURES:
All METAR fittings are manufactured with the
Metalok Integral Coupler as standard; this
represents a major advance in modern cable
management design. The Metar Integral
Couplers reduce:
• The number of fixings required to connect the
ladder and fitting, in turn reducing the ladder to
fitting connection by 67%.
• And therefore the overall installation time,
weight and cost.
