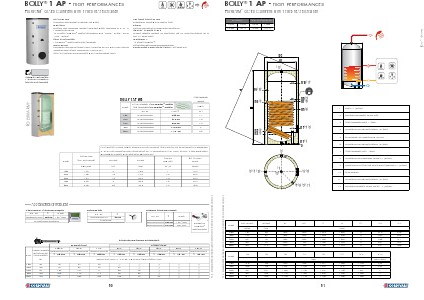

BOLLY® 1 AP - HIGH PERFORMANCES
POLYWARM® COATED CALORIFIERS WITH 1 FIXED HEAT EXCHANGER
APPLICATION
Production and storage of sanitary hot water
MATERIAL
Material and finishings, suitable drinkable water according to D. M. n.
174 dated 06.04.04,:
- Mild steel Polywarm® coated (certification ACS - SSICA - DVGW - W270
- UBA - WRAS)
HEAT EXCHANGER
1 Polywarm® coated fixed heat exchanger
INSULATION
Ecological hard polyurethane foam, thickness 50 mm with high thermal
insulation and thermal conductivity 0,023 W/mK.
Grey PVC external lining complete with top and flange cover.
CATHODE PROTECTION
Magnesium anode with Anoden Tester
DRAIN
External confluence through drain connection.
GASKET- FLANGE PLATE
Silicone gaskets suitable for alimentary use for max temperature up to
200°C. Flange plate.
WARRANTY
- 5 years (Polywarm®)
See general sales conditions and warranty
ACCESSORIES AND SPARE PARTS : See page 216
PROMPT DELIVERY
1-5 days to dispatch
(delivery time excluded)
POLYWARM®
BOLLY 1 AP WB
Model
150
200
300
400
500
Model
Energy loss
(EN 12897:2006)
D.H.W. Storage: POLYWARM® coated
Heat exchanger POLYWARM® coated
Art. Nr.
Price €
3105162320501
786,00
3105162320502
832,00
3105162320503
970,00
3105162320504
1.170,00
3105162320505
1.323,00
Heat exchanger
surface
Lower
[m2]
1,1
1,5
1,8
2
2,6
EXCHANGER: Output power arising from performance tests carried out as prescribed in paragraph
A. 4 EN 12897:2006 (primary temperature 80 °C, production D.H.W. from 15 to 60 °C and subsequent
withdrawal of water with generator switched off)
Primary
ΔP Primary
Surface
Output
flow rate
circuit
[Kwh/24h]
[m2]
[Kw]
[m3/h]
[mbar]
1,33
1,46
1,87
2,35
2,45
1,1
1,5
1,8
2
2,6
14,2
19,3
23,3
26,4
33,4
1
1,2
1,4
1,6
1,8
10,9
20,8
33,3
47,3
76,5
150
200
300
400
500
Accessories on request
“Easy Control” Electronic Display
€
ART. NR.
Model
5005000310003 428,00 150 ÷ 500
Mounted and connected
Thermometer
Art. Nr.
5032240000107
5 units box
Titanium electronic anode
€
80,00
Art. Nr.
€
5200000000008 220,00
5200000000009 274,00
Model
150 ÷ 300
400, 500
Suitable for
Polywarm®
coated models
Electrical immersions kit available
MONOPHASE
THREEPHASE
4 kW
5 kW
6 kW
9 kW
12 kW
1,5 kW
2 kW
3 kW
Quantity of water 5240000000034 5240000000035 5240000000036 5240000000027 5240000000028 5240000000029 5240000000030 5240000000031
affected by the
€ 358,00
€ 358,00
€ 359,00
€ 361,00
€ 481,00
€ 254,00
€ 254,00
€ 256,00
Mod. electric heater
[lt]
Ignition time from 10 °C to 45 °C with immersion heaters [min]
150
200
300
400
500
42
44
80
126
185
76
78
143
226
331
57
59
107
170
248
38
39
71
113
165
//
29
54
85
124
80
//
//
43
68
99
//
//
//
//
83
//
//
//
//
//
//
//
//
//
//
