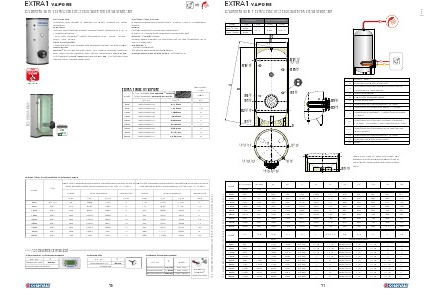

EXTRA1 VAPORE CALORIFIERS WITH 1 EXTRACTABLE HEAT EXCHANGER FOR STEAM GENERATOR APPLICATION Production and storage of sanitary hot water. Suitable for steam generators. MATERIAL Material and finishings, suitable drinkable water according to D. M. n. 174 dated 06.04.04,: - Mild steel Polywarm® coated (certification ACS - SSICA - DVGW W270 - UBA - WRAS) HEAT EXCHANGER 1 stainless steel 316L straight heat exchanger suitable for steam power INSULATION NOFIRE® 50 mm soft polyester fibre 100% made of recyclable material, with high Thermal insulation and Thermal conductivity: 0,039 W/mK. Fire resistance class B-s2d0 according to EN 13501. PVC external lining complete with top and flange cover. CATHODE PROTECTION Magnesium anode with Anoden Tester - Models > 1500 n° 2 magnesium anodes. DRAIN External confluence through drain connection. Models > lt 1000 external confluence through drain pipe. GASKET- FLANGE PLATE Silicone gaskets suitable for alimentary use for max temperature up to 200°C. Flange plate. WARRANTY - 5 years (Polywarm®) See general sales conditions and warranty ACCESSORIES AND SPARE PARTS : See page 216 NOFIRE® INSULATION HEAT EXCHANGER EXTRA 1 WXC VT VAPORE POLYWARM® Model 500 800 1000 1500 2000 2500 3000 4000 5000 HEAT EXCHANGER STAINLESS STEEL 316L OK SURFACE D.H.W. Storage: POLYWARM® coated Heat Exchanger: STAINLESS STEEL Art. Nr. Price € 3069162360103 2.315,00 3069162360104 3.036,00 3069162360105 3.595,00 3069162360106 4.948,00 3069162360107 5.570,00 3069162360111 6.440,00 3069162360108 6.612,00 3069162360109 8.353,00 3069162360110 10.617,00 Lower [m2] 1 1,5 2 3 3 3 3 4 5 STEAM HEAT EXCHANGERS TECHNICAL DATA Model PED Lower heat Exchangers peformances calculated with primary circuit at Lower heat Exchangers peformances calculated with primary circuit at 6 bar saturated steam and production of DHW from 10° to 45°C 3 bar saturated steam and production of DHW from 10° to 45°C Output 500 800 1000 1500 2000 2500 3000 4000 5000 Art. 3.3 Cat. I Cat. I Cat. I Cat. I Cat. I Cat. I Cat. I Cat. I [KW] 141 212 282 423 423 423 423 564 705 DHW production [l/h] 3464 5196 6928 10393 10393 10393 10393 13857 17321 Ignition time Output [min] 9 9 9 9 12 13 17 17 17 [KW] 114 171 227 341 341 341 341 455 568 [l/10'] 1189 1869 2463 3554 4228 4571 5438 7031 9097 DHW production [l/h] 2793 4189 5585 8378 8378 8378 8378 11171 13963 [l/10'] 1077 1701 2239 3218 3892 4235 5102 6583 8537 Ignition time [min] 11 12 11 11 15 17 22 21 22 Accessories on request “Easy Control” Electronic Display € ART. NR. 5005000310002 420,00 Mounted and connected Thermometer Art. Nr. 5032240000107 5 units box 40 Titanium electronic anode € 80,00 Art. Nr. € Model 5200000000009 274,00 500, 800 5200000000011 335,00 1000, 1500 5200000000013 607,00 2000÷5000 Suitable for Polywarm® coated models
