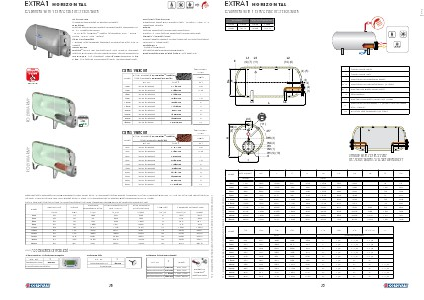

EXTRA1 HORIZONTAL CALORIFIERS WITH 1 EXTRACTABLE HEAT EXCHANGER APPLICATION Production and storage of sanitary hot water MATERIAL Material and finishings, suitable drinkable water according to D. M. n. 174 dated 06.04.04,: - Mild steel Polywarm® coated (certification ACS - SSICA DVGW - W270 - UBA - WRAS) HEAT EXCHANGER 1 straight heat exchanger (available on Stainless Steel 316L or Copper) INSULATION NOFIRE® 50 mm soft polyester fibre 100% made of recyclable material, with high Thermal insulation and Thermal conductivity: 0,039 W/mK. Fire resistance class B-s2d0 according to EN 13501. PVC external lining complete with top and flange cover. CATHODE PROTECTION Magnesium anode with Anoden Tester - Models > 1500 n° 2 magnesium anodes. DRAIN External confluence through drain connection. Models > lt 1000 external confluence through drain pipe. GASKET- FLANGE PLATE Silicone gaskets suitable for alimentary use for max temperature up to 200°C. Flange plate. WARRANTY - 5 years (Polywarm®) See general sales conditions and warranty ACCESSORIES AND SPARE PARTS : See page 216 HEAT EXCHANGER EXTRA 1 WXC OR SURFACE ® Model POLYWARM® NOFIRE® INSULATION 200 300 500 800 1000 1500 2000 3000 4000 5000 HEAT EXCHANGER STAINLESS STEEL 316L OK D.H.W. Storage: POLYWARM coated Heat Exchanger: STAINLESS STEEL Art. Nr. Price € 3072161430001 1.361,00 3072161430002 1.562,00 3072161430003 1.867,00 3072161430004 2.517,00 3072161430005 2.961,00 3072161430006 3.845,00 3072161430007 4.913,00 3072161430008 6.494,00 3072161430009 8.997,00 3072161430011 10.772,00 Lower [m2] 0,5 0,75 1 1,5 2 3 4 5 8 10 HEAT EXCHANGER EXTRA 1 WRC OR SURFACE ® POLYWARM® D.H.W. Storage: POLYWARM coated Heat Exchanger: COPPER Model Art. Nr. Price € 200 3072161420001 1.413,00 300 3072161420002 1.621,00 500 3072161420003 1.942,00 800 3072161420004 2.604,00 1000 3072161420005 3.052,00 1500 3072161420006 4.262,00 2000 3072161420007 5.353,00 3000 3072161420008 6.949,00 4000 3072161420009 9.477,00 5000 3072161420011 11.276,00 Lower [m2] 0,5 0,75 1 1,5 2 3 4 5 8 10 Data have been calculated on following basis: Primary circuit at 80 °C, and proper energy source; Production of DHW in continue way from 10 °C at t2; DHW that can be taken in the first 10’ and in the first hour from storage at 60°C, input 10°C and output 45°C; Sanitary water according to UNI CTI 8065. Even if tanks are tested to resist till max temperature the local legislation has always to be observed during the use. Continous DHW produced in the DHW produced Ignition Time Output Flow rate Exchanger pressure loss production of DHW first 10 Min. in the first hour Model [mm.H2O] [mbar] [min] [Kw] [lt/h] [lt/10’] [lt/60’] [m3/h] 49 18 455 347 635 2 309 30,3 200 48 28 701 524 968 3 372 36,5 300 60 38 947 844 1443 4 419 41,1 500 59 59 1466 1301 2230 6 718 70,4 800 54 86 2127 1776 3123 10 1380 135,3 1000 53 133 3290 2677 4761 15 2295 225,1 1500 52 180 4453 3564 6384 20 2996 293,8 2000 65 216 5361 5144 8539 20 2436 238,9 3000 57 330 8168 6918 12092 20 3896 382,1 4000 60 401 9921 8639 14923 20 4707 461,6 5000 Accessories on request “Easy Control” Electronic Display € ART. NR. 5005000310002 420,00 Mounted and connected Thermometer Art. Nr. 5032240000107 5 units box 38 Titanium electronic anode € 80,00 Art. Nr. 5200000000008 5200000000009 5200000000011 5200000000013 € Model 220,00 200, 300 274,00 500, 800 335,00 1000, 1500 607,00 2000÷5000 Suitable for Polywarm® coated models
