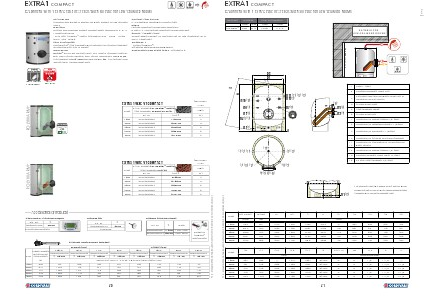

EXTRA1 COMPACT CALORIFIERS WITH 1 EXTRACTABLE HEAT EXCHANGER SUITABLE FOR LOW-CEILINGED ROOMS APPLICATION Production and storage of sanitary hot water suitable for low-ceilinged rooms. MATERIAL Material and ﬁnishings, suitable drinkable water according to D. M. n. 174 dated 06.04.04,: - Mild steel Polywarm® coated (certiﬁcation ACS - SSICA - DVGW W270 - UBA - WRAS) HEAT EXCHANGER Antilegionella® Heat Exchanger, with tubes bent to the bottom (available on Stainless Steel 316L or Copper) INSULATION NOFIRE® 50 mm soft polyester ﬁbre 100% made of recyclable material, with high Thermal insulation and Thermal conductivity: 0,039 W/mK. Fire resistance class B-s2d0 according to EN 13501. PVC external lining complete with top and ﬂange cover. NOFIRE® INSULATION HEAT EXCHANGER EXTRA 1 WXC VT COMPACT SURFACE ® Model 1500 2000 2500 3000 4000 HEAT EXCHANGER STAINLESS STEEL 316L OK D.H.W. Storage: POLYWARM coated Heat Exchanger: STAINLESS STEEL Art. Nr. Price € 3072162360507 3.872,00 3072162360508 5.023,00 3072162360513 6.008,00 3072162360509 6.594,00 3072162360510 8.112,00 Lower [m2] 3 4 5 6 8 HEAT EXCHANGER EXTRA 1 WRC VT COMPACT POLYWARM® POLYWARM® ANTILEGIONELLA® HEAT EXCHANGER CATHODE PROTECTION n° 2 magnesium anodes with Anoden Tester DRAIN External conﬂuence through drain connection. Models > lt 1000 external conﬂuence through drain pipe. GASKET- FLANGE PLATE Silicone gaskets suitable for alimentary use for max temperature up to 200°C. Flange plate. WARRANTY - 5 years (Polywarm®) See general sales conditions and warranty ACCESSORIES AND SPARE PARTS : See page 216 SURFACE ® Model 1500 2000 2500 3000 4000 D.H.W. Storage: POLYWARM coated Heat Exchanger: COPPER Art. Nr. Price € 3072162350507 4.165,00 3072162350508 5.356,00 3072162350513 6.622,00 3072162350509 7.221,00 3072162350510 8.773,00 Lower [m2] 3 4 5 6 8 Accessories on request “Easy Control” Electronic Display € ART. NR. 5005000310002 420,00 Mounted and connected Thermometer Art. Nr. 5032240000107 5 units box Titanium electronic anode € 80,00 Art. Nr. € Model 5200000000011 335,00 1000, 1500 5200000000013 607,00 2000÷5000 Suitable for Polywarm® coated models Electrical immersions kit available MONOPHASE THREEPHASE 4 kW 5 kW 6 kW 9 kW 12 kW 1,5 kW 2 kW 3 kW Quantity of water affected by the 5240000000034 5240000000035 5240000000036 5240000000027 5240000000028 5240000000029 5240000000030 5240000000031 Mod. electric heater € 358,00 € 358,00 € 359,00 € 361,00 € 481,00 € 254,00 € 254,00 € 256,00 [lt] Ignition time from 10 °C to 45 °C with immersion heaters [min] 443 793 595 396 1500 297 238 198 132 99 577 1033 775 517 387 310 258 172 129 2000 797 1428 1071 714 535 428 357 238 178 2500 874 1565 1173 782 587 469 391 261 196 3000 621 497 414 276 207 924 1655 1241 828 4000 20
