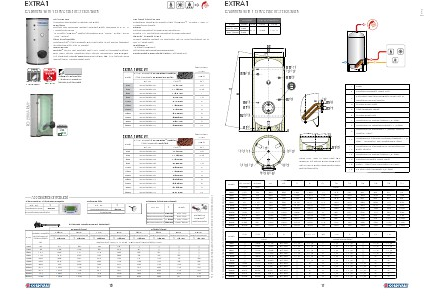

EXTRA1 CALORIFIERS WITH 1 EXTRACTABLE HEAT EXCHANGER APPLICATION Production and storage of sanitary hot water MATERIAL Material and ﬁnishings, suitable drinkable water according to D. M. n. 174 dated 06.04.04,: - Mild steel Polywarm® coated (certiﬁcation ACS - SSICA - DVGW - W270 - UBA - WRAS) HEAT EXCHANGER Antilegionella® Heat Exchanger, with tubes bent to the bottom (available on Stainless Steel 316L or Copper) INSULATION NOFIRE® 50 mm soft polyester ﬁbre 100% made of recyclable material, with high Thermal insulation and Thermal conductivity: 0,039 W/mK. Fire resistance class B-s2d0 according to EN 13501. PVC external lining complete with top and ﬂange cover. CATHODE PROTECTION Magnesium anode with Anoden Tester (Polywarm®) - Models > 1500 n° 2 magnesium anodes. DRAIN External conﬂuence through drain connection. Models > lt 1000 external conﬂuence through drain pipe. GASKET- FLANGE PLATE Silicone gaskets suitable for alimentary use for max temperature up to 200°C. Flange plate. WARRANTY - 5 years (Polywarm®) See general sales conditions and warranty ACCESSORIES AND SPARE PARTS : See page 216 HEAT EXCHANGER EXTRA 1 WXC VT SURFACE ® PROMPT DELIVERY POLYWARM® ANTILEGIONELLA® HEAT EXCHANGER NOFIRE® INSULATION Model 1-5 days to dispatch (delivery time excluded) 200 300 500 800 1000 1500 2000 2500 3000 4000 5000 HEAT EXCHANGER D.H.W. Storage: POLYWARM coated Heat Exchanger: STAINLESS STEEL Art. Nr. Price € 3072162360102 1.183,00 3072162360103 1.358,00 3072162360104 1.543,00 3072162360105 2.101,00 3072162360106 2.374,00 3072162360107 3.522,00 3072162360108 4.487,00 3072162360113 5.442,00 3072162360109 5.998,00 3072162360110 7.513,00 3072162360112 8.994,00 Lower [m2] 0,5 0,75 1 1,5 2 3 4 5 6 8 10 STAINLESS STEEL 316L OK HEAT EXCHANGER EXTRA 1 WRC VT Model 200 300 500 800 1000 1500 2000 2500 3000 4000 5000 SURFACE D.H.W. Storage: POLYWARM® coated Heat Exchanger: COPPER Art. Nr. Price € 3072162350102 1.187,00 3072162350103 1.368,00 3072162350104 1.639,00 3072162350105 2.199,00 3072162350106 2.602,00 3072162350107 3.829,00 3072162350108 4.820,00 3072162350113 6.086,00 3072162350109 6.648,00 3072162350110 8.185,00 3072162350112 9.714,00 Lower [m2] 0,5 0,75 1 1,5 2 3 4 5 6 8 10 Accessories on request “Easy Control” Electronic Display € ART. NR. 5005000310002 420,00 Mounted and connected Thermometer Art. Nr. 5032240000107 5 units box Electrical immersions kit available Titanium electronic anode € 80,00 Art. Nr. 5200000000008 5200000000009 5200000000011 5200000000013 € Model 220,00 200, 300 274,00 500, 800 33 5,00 1000, 1500 607,00 2000÷5000 Suitable for Polywarm® coated models MONOPHASE THREEPHASE 4 kW 5 kW 6 kW 9 kW 12 kW 1,5 kW 2 kW 3 kW Quantity of water affected by the 5240000000034 5240000000035 5240000000036 5240000000027 5240000000028 5240000000029 5240000000030 5240000000031 Mod. electric heater € 358,00 € 358,00 € 359,00 € 361,00 € 481,00 € 254,00 € 254,00 € 256,00 [lt] Ignition time from 10 °C to 45 °C with immersion heaters [min] 49 87 65 44 200 141 // // // // 76 136 102 68 212 41 // // // 300 127 228 171 114 353 68 57 // // 500 178 318 239 159 565 95 80 53 // 800 243 436 327 218 163 131 109 73 54 1000 288 516 387 258 194 155 129 86 65 1500 443 793 595 396 297 238 198 132 99 2000 577 1033 775 517 387 310 258 172 129 2500 577 1033 775 517 387 310 258 172 129 3000 797 1428 1071 714 535 428 357 238 178 4000 699 559 466 311 233 1040 1864 1398 932 5000 16
