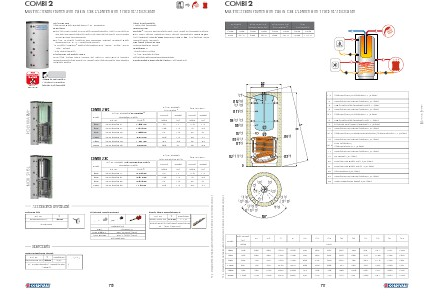

MULTI-HEAT ENERGY BUFFER WITH TANK IN TANK CALORIFIER WITH 1 FIXED HEAT EXCHANGER
STORAGE
(V1)
Pmax
Tmax
3 bar
99 °C
DHW TANK (V2)
(STAINLESS STEEL)
Pmax
Tmax
6 bar
95 °C
DHW TANK (V2)
(POLYWARM®)
Pmax
Tmax
6 bar
90 °C
HEAT
EXCHANGER
Pmax
Tmax
12 bar
110 °C
De
Df
1-3
H12 (16)
(17) (18)
2
4
5
H11 (15)
Heating return/To Generator 1”1/2 Gas F
Connection for instrumentation 1/2” Gas F
Lower fixed heat exchanger outlet 1” Gas F
Connection for instrumentation 1/2” Gas F
6-7
H9 (12) (13)
H8 (10)
H7 (9)
H
V2
Heating return/To Generator 1”1/2 Gas F
8
9
10
Lower fixed heat exchanger inlet 1” Gas F
Electrical immersion resistance 1”1/2 Gas F
Connection for instrumentation 1/2” Gas F
12-13 Heating return/To additional generator/Heating delivery 1”1/2 Gas F
V1
H6 (8)
H5 (6) (7)
H4 (5)
15
Connection for instrumentation 1/2” Gas F
From generator/
16-18
Heating delivery 1”1/2 Gas F
17
Connection for instrumentation 1/2” Gas F
19
0
Air spurge 1/2” Gas F
20
H3 (4)
H2 (1) (2) (3)
Domestic hot water inlet 3/4” Gas F
21
P.E.D. product planned and produced in conformity to the article 3.3 of directive 92/23/CE
Chain magnesium anode 3/4” Gas F
(22)
(24)
(1) (6)
(12) (16)
Connection for instrumentation 1/2” Gas F
24
(23)
Recirculation 3/4” Gas F
23
(20)
Domestic hot water outlet 3/4” Gas F
22
(19)
MULTIFUEL ENERGY
(24)
A
P.E.D. product planned and produced in conformity to the article 3.3 of directive 92/23/CE
