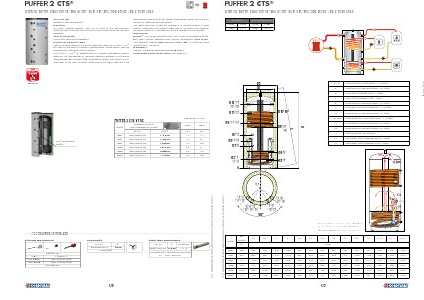

PUFFER 2 CTS®
STORAGE BUFFER TANKS FOR HEATING WATER
WITH STRATIFICATION DEVICE AND 2 FIXED COILS
APPLICATION
Storage of heating hot water
MATERIAL
Mild steel outside painted. There is no need of any anti-corrosion
treatment due to the fact that the buffer is in a closed circuit without any
adding air
HEAT EXCHANGER
2 mild steel fixed heat exchangers
TECHNICAL DESCRIPTIONS
Used to improve flexibility of pellets, stoves and burners. PUFFER 1 CTS®
are used in units with a typically discontinuous energy source such as
biomass boiler and solar thermal system.
The PUFFER 1 CTS® is characterized by multiple stratification system
based on the combination of Cordivari Labyrinth spreader for returning
heating water with a brand new stratification device that convey in the
upper part of the tank the water heated up by the lower fixed coil. This
combination ensures a perfect natural stratification inside the tank with
no valve or additional external device.
The lower fixed coil allows the possibility of connecting with a solar
system. Positioned at the bottom lower part of the buffer tank and with
very small footprint, it increases the volume available for the storage.
INSULATION
NOFIRE® 100 mm soft polyester fibre 100% made of recyclable material,
with high Thermal insulation and Thermal conductivity: 0,039 W/mK.
Fire resistance class B-s2d0 according to EN 13501. PVC external lining
complete with top cover
WARRANTY
2 years - See general sales conditions and warranty
ACCESSORIES AND SPARE PARTS : See page 216
NOFIRE®
INSULATION
HEAT EXCHANGER SURFACE
PUFFER 2 CTS VT VC
Model
500
600
800
1000
1500
2000
CTS® stratificator
system
Storage: Mild steel
Heat exchanger: Mild steel
Art. Nr.
3251162283702
3251162283703
3251162283704
3251162283705
3251162283706
3251162283707
Upper
Price €
1.432,00
1.422,00
1.706,00
1.937,00
2.685,00
3.176,00
Lower
[m2]
1,3
1,3
1,8
2,5
2,8
2,8
[m2]
1,9
2,1
2,5
3,1
3,8
4,6
Accessories on request
Electrical immersions kit
[Kw]
from 1,5 to 3
from 4 to 12
Thermometer
Art. Nr.
5032240000107
5 units box
Available kit:
Tension [V]
220 - MONOPHASE
400 - THREEPHASE
See page 220
138
Buffer tanks connecting kit
€
80,00
€
Art. Nr.
Connection
5006170001001 110,00
1” 1/2
Stainless steel extensible connecting
kit - (200 ÷ 400 mm)
