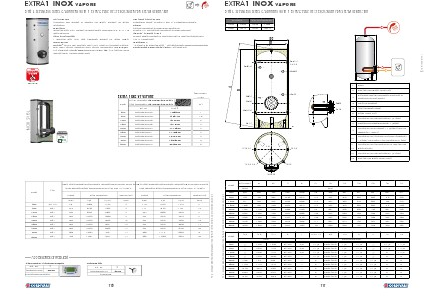

EXTRA1 INOX
VAPORE
316 L STAINLESS STEEL CALORIFIERS WITH 1 EXTRACTABLE HEAT EXCHANGER FOR STEAM GENERATOR
APPLICATION
Production and storage of sanitary hot water. Suitable for steam
generators.
MATERIAL
Stainless Steel 316 L suitable drinkable water according to D. M. n. 174
dated 06.04.04
HEAT EXCHANGER
1 stainless steel 316L heat exchanger suitable for steam power
INSULATION
NOFIRE® 50 mm soft polyester fibre 100% made of recyclable material,
with high Thermal insulation and Thermal conductivity: 0,039 W/mK.
Fire resistance class B-s2d0 according to EN 13501. PVC external lining
complete with top and flange cover.
CATHODE PROTECTION
Magnesium anode - Models > 1500 n° 2 magnesium anodes.
DRAIN
External confluence through drain connection.
Models > lt 1000 external confluence through drain pipe.
GASKET- FLANGE PLATE
Silicone gaskets suitable for alimentary use for max temperature up to
192 °C. Flange plate.
WARRANTY
- 5 years (316L stainless steel) - See general sales conditions and warranty
ACCESSORIES AND SPARE PARTS : See page 216
NOFIRE®
INSULATION
HEAT EXCHANGER
EXTRA 1 XXC VT VAPORE
INOX 316L
Model
500
800
1000
1500
2000
2500
3000
4000
5000
HEAT EXCHANGER
STAINLESS STEEL
316L
OK
Model
PED
[m2]
1
1,5
2
3
3
3
3
4
5
Lower heat Exchangers peformances calculated with primary circu
