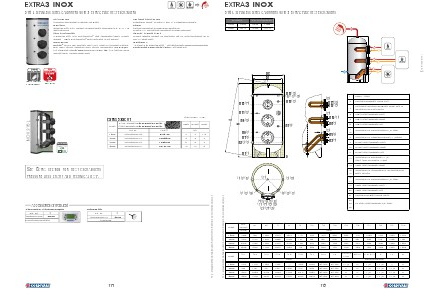

EXTRA3 INOX
316 L STAINLESS STEEL CALORIFIERS WITH 3 EXTRACTABLE HEAT EXCHANGERS
APPLICATION
Production and storage of sanitary hot water
MATERIAL
Stainless Steel 316 L suitable drinkable water according to D. M. n. 174
dated 06.04.04
HEAT EXCHANGER
2 stainless steel 316L Antilegionella® heat exchangers (upper, middle:
straight - lower: Antilegionella® with tubes bent to the bottom)
INSULATION
NOFIRE® 50 mm soft polyester fibre 100% made of recyclable material,
with high Thermal insulation and Thermal conductivity: 0,039 W/mK.
Fire resistance class B-s2d0 according to EN 13501. PVC external lining
complete with top and flange cover.
ANTILEGIONELLA®
HEAT EXCHANGER
CATHODE PROTECTION
Magnesium anode - Models > 1500 n° 2 magnesium anodes.
DRAIN
External confluence through drain connection.
Models > lt 1000 external confluence through drain pipe.
GASKET- FLANGE PLATE
Silicone gaskets suitable for alimentary use for max temperature up to
200°C. Flange plate.
WARRANTY
- 5 years (316L stainless steel) - See general sales conditions and warranty
ACCESSORIES AND SPARE PARTS : See page 216
NOFIRE®
INSULATION
INOX 316L
EXTRA 3 XXC VT
Model
1500
2000
3000
5000
HEAT EXCHANGER
STAINLESS STEEL
316L
D.H.W. Storage: 316L STAINLESS STEEL
Heat Exchanger: 316L STAINLESS STEEL
Art. Nr.
Price €
3092052300106
9.161,00
3092052300107
12.965,00
3092052300109
14.987,00
3092052300112
24.321,00
OK
SEE EXTRA
SECTION FOR HEAT EXCHANGERS
PRESSURE LOSS CHART AND TECHNICAL DATA
Accessories on request
“Easy Control” Electronic Display
€
ART. NR.
5005000310002
420,00
Mounted and connected
Thermometer
Art. Nr.
5032240000107
5 units box
114
€
80,00
HEAT EXCHANGER SURFACE
Lower Middle Upper
3
4
6
10
[m2]
3
4
6
10
1,5
2
3
5
