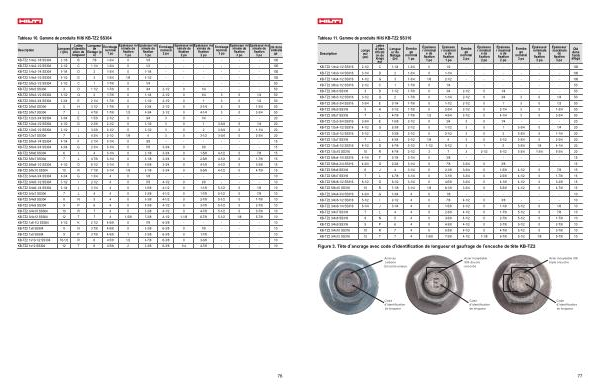

Tableau 11. Gamme de produits Hilti KB-TZ2 SS316
Description
Longu eur( po)
Lettre d’ iden tificati on de longu eur
Longue ur de filetage
( po)
Enroba ge nominal 1 po
Épaisseu r minimal e de fixation
1 po
Épaisseu r maximal e de fixation
1 po
Enroba ge nominal 2 po
Épaisseu r minimal e de fixation
2 po
Épaisseu r maximal e de fixation
2 po
Enroba ge nominal 3 po
Épaisseur minimale de fixation
3 po
Épaisseur maximale de fixation
3 po
KB-TZ2 1 / 4x2-1 / 2 SS316 2-1 / 2 C 1-1 / 4 1-3 / 4 0 1 / 2------ 100 KB-TZ2 1 / 4x3-1 / 4 SS316 3-1 / 4 D 2 1-3 / 4 0 1-1 / 4------ 100 KB-TZ2 1 / 4x4-1 / 2 SS316 4-1 / 2 G 3 1-3 / 4 1 / 8 2-1 / 2------ 100 KB-TZ2 3 / 8x2-1 / 2 SS316 2-1 / 2 C 1 1-7 / 8 0 1 / 4------ 50 KB-TZ2 3 / 8x3 SS316 3 D 1-1 / 2 1-7 / 8 0 3 / 4 2-1 / 2 0 1 / 4--- 50 KB-TZ2 3 / 8x3-1 / 2 SS316 3-1 / 2 Ω 2 1-7 / 8 0 1-1 / 4 2-1 / 2 0 3 / 4 3 0 1 / 4 50 KB-TZ2 3 / 8x3-3 / 4 SS316 3-3 / 4 E 2-1 / 4 1-7 / 8 0 1-1 / 2 2-1 / 2 0 1 3 0 1 / 2 50 KB-TZ2 3 / 8x5 SS316 5 H 3-1 / 2 1-7 / 8 0 2-3 / 4 2-1 / 2 0 2-1 / 4 3 0 1-3 / 4 50 KB-TZ2 3 / 8x7 SS316 7 L 4-7 / 8 1-7 / 8 1 / 2 4-3 / 4 2-1 / 2 0 4-1 / 4 3 0 3-3 / 4 50 KB-TZ2 1 / 2x3-3 / 4 SS316 3-3 / 4 E 1-5 / 8 2-1 / 2 0 3 / 4 3 0 1 / 4--- 20 KB-TZ2 1 / 2x4-1 / 2 SS316 4-1 / 2 G 2-3 / 8 2-1 / 2 0 1-1 / 2 3 0 1 3-3 / 4 0 1 / 4 20 KB-TZ2 1 / 2x5-1 / 2 SS316 5-1 / 2 I 3-3 / 8 2-1 / 2 0 2-1 / 2 3 0 2 3-3 / 4 0 1-1 / 4 20 KB-TZ2 1 / 2x7 SS316 7 L 4-3 / 4 2-1 / 2 1 / 8 4 3 0 3-1 / 2 3-3 / 4 0 2-3 / 4 20 KB-TZ2 1 / 2x8-1 / 2 SS316 8-1 / 2 O 4-7 / 8 2-1 / 2 1-1 / 2 5-1 / 2 3 1 5 3-3 / 4 1 / 4 4-1 / 4 20 KB-TZ2 1 / 2x10 SS316 10 R 4-7 / 8 2-1 / 2 3 7 3 2-1 / 2 6-1 / 2 3-3 / 4 1-3 / 4 5-3 / 4 20 KB-TZ2 5 / 8x4-1 / 4 SS316 4-1 / 4 F 2-1 / 4 3-1 / 4 0 3 / 8------ 15 KB-TZ2 5 / 8x4-3 / 4 SS316 4-3 / 4 G 2-3 / 4 3-1 / 4 0 7 / 8 3-3 / 4 0 3 / 8--- 15 KB-TZ2 5 / 8x6 SS316 6 J 4 3-1 / 4 0 2-1 / 8 3-3 / 4 0 1-5 / 8 4-1 / 2 0 7 / 8 15 KB-TZ2 5 / 8x7 SS316 7 L 4-7 / 8 3-1 / 4 0 3-1 / 8 3-3 / 4 0 2-5 / 8 4-1 / 2 0 1-7 / 8 15 KB-TZ2 5 / 8x8-1 / 2 SS316 8-1 / 2 O 6-1 / 2 3-1 / 4 0 4-5 / 8 3-3 / 4 0 4-1 / 8 4-1 / 2 0 3-3 / 8 15 KB-TZ2 5 / 8x10 SS316 10 R 7-1 / 8 3-1 / 4 1 / 8 6-1 / 8 3-3 / 4 0 5-5 / 8 4-1 / 2 0 4-7 / 8 15 KB-TZ2 3 / 4x4-3 / 4 SS316 4-3 / 4 G 1-3 / 4 4 0 1 / 8------ 10 KB-TZ2 3 / 4x5-1 / 2 SS316 5-1 / 2 I 2-1 / 2 4 0 7 / 8 4-1 / 2 0 3 / 8--- 10 KB-TZ2 3 / 4x6-1 / 4 SS316 6-1 / 4 J 3-1 / 4 4 0 1-5 / 8 4-1 / 2 0 1-1 / 8 5-1 / 2 0 1 / 8 10 KB-TZ2 3 / 4x7 SS316 7 L 4 4 0 2-3 / 8 4-1 / 2 0 1-7 / 8 5-1 / 2 0 7 / 8 10 KB-TZ2 3 / 4x8 SS316 8 N 5 4 0 3-3 / 8 4-1 / 2 0 2-7 / 8 5-1 / 2 0 1-7 / 8 10 KB-TZ2 3 / 4x9 SS316 9 P 6 4 0 4-3 / 8 4-1 / 2 0 3-7 / 8 5-1 / 2 0 2-7 / 8 10 KB-TZ2 3 / 4x10 SS316 10 R 7 4 0 5-3 / 8 4-1 / 2 0 4-7 / 8 5-1 / 2 0 3-7 / 8 10 KB-TZ2 3 / 4x12 SS316 12 T 7 4 1-5 / 8 7-3 / 8 4-1 / 2 1-1 / 8 6-7 / 8 5-1 / 2 1 / 8 5-7 / 8 10
Figure 3. Tête d’ ancrage avec code d’ identification de longueur et gaufrage de l’ encoche de tête KB-TZ2
Qté dans l’ emb allage
Acier au carbone Encoche unique
Acier inoxydable 304 double encoche
Acier inoxydable 316 triple encoche
Code d’ identification de longueur
Code d’ identification de longueur
Code d’ identification de longueur
77
