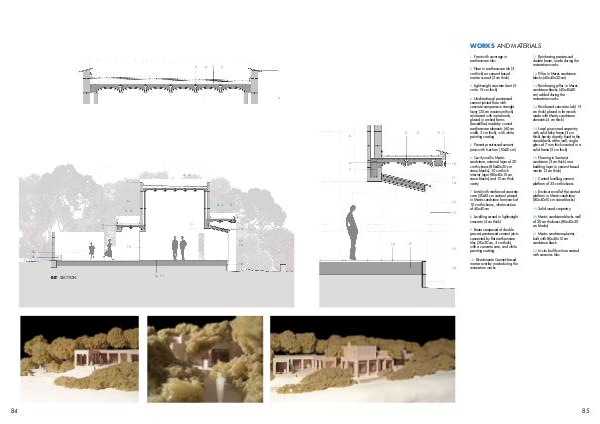

1. Front with coverage in earthenware tiles
2. Floor in earthenware tile( 3 cm thick) on cement-based mortar screed( 2 cm thick)
|
11. Reinforcing prestressed double beam, made during the restoration works
12. Pillar in Marés sandstone blocks( 40x40x20 cm)
|
|||||||
6. |
5. |
2. |
9. |
1. |
3. Lightweight concrete slant( 5 cm to 15 cm thick)
4. Unidirectional prestressed cement joisted floor with concrete compressive strenght layer( 25 cm maximum thick) reinforced with metal mesh, placed in arched forms( bovedillas) made by curved earthenware elements( 60 cm width, 3 cm thick), with white painting coating
5. Precast prestressed cement joists with I section( 10x20 cm)
|
13. Reinforcing pillar in Marés sandstone blocks( 40x40x20 cm) added during the restoration works
14. Reinforced concrete slab( 13 cm thick) placed in formwork made with Marés sandstone elements( 4 cm thick)
15. Local pine wood carpentry with solid false frame( 3 cm thick) barely directly fixed to the stone blocks of the wall, single glass of 7 mm thick inserted in a solid frame( 2 cm thick)
|
|
4.
7.
|
10.
11. 14.
|
6. Cavity wall in Marés sandstone, external layer of 20 cm thickness( 80x40x20 cm stone blocks), 10 cm thick interior layer( 80x40x10 cm stone blocks) and 10 cm thick cavity |
16. Flooring in Santanyì sandstone( 3 cm thick) on a bedding layer in cement-based mortar( 2 cm thick)
17. Canted levelling cement platform of 35 cm thickness
|
16. 17. |
12.
13.
15.
18.
|
7. Lintel with reinforced concrete core( 20x35 cm section) placed in Marés sandstone formwork of 10 cm thickness, whole section of 40x40 cm
8. Levelling screed in lightweight concrete( 5 cm thick)
9. Beam composed of double precast prestressed cement joists connected by flat earthenware tiles( 20x20 cm, 3 cm thick), with a concrete core, and white painting coating
10. Rivestimento Cement-based mortar overlay made during the restoration works
|
18. Enclosure wall of the canted platform in Marés sandstone( 80x40x10 cm stone blocks)
19. Solid wood carpentry
20. Marés sandstone blocks wall of 20 cm thickness( 80x40x20 cm blocks)
21. Marés sandstone planter, built with 80x40x10 cm sandstone block
22. In-situ built furniture coated with ceramics tiles
|
