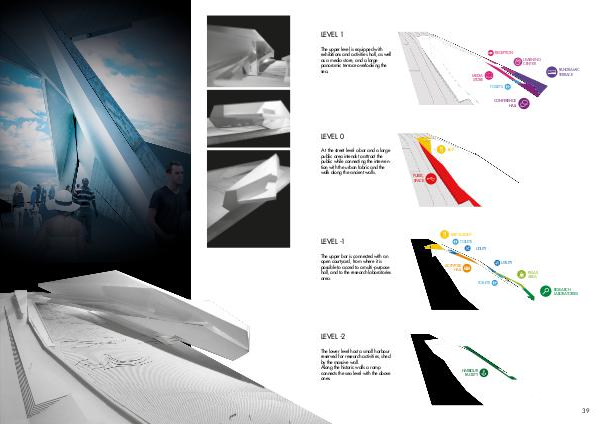

LEVEL 1
The upper level is equipped with exhibitions and activities hall, as well as a media store, and a large panoramic terrace overlooking the sea.
MEDIA STORE
RECEPTION
LEARNING CENTER
PANORAMIC TERRACE
TOILETS
CONFERENCE HALL
LEVEL 0
A t the street level a bar and a large public area intends to attract the public while connecting the intervention with the urban fabric and the walk along the ancient walls.
PUBLIC SPACE
BAR
LEVEL-1
RESTAURANT
TOILETS
UTILITY
The upper bar is connected with an open courtyard, from where it is possible to acced to a multi-purpose hall, and to the research laboratories area.
ACTIVITIES HALL
TOILETS
UTILITY
RELAX AREA
RESEARCH LABORATORIES
LEVEL-2
The lower level host a small harbour reserved for research activities, shed by the massive wall. Along the historic walls a ramp connects the sea level with the above ones.
HARBOUR FACILITY
