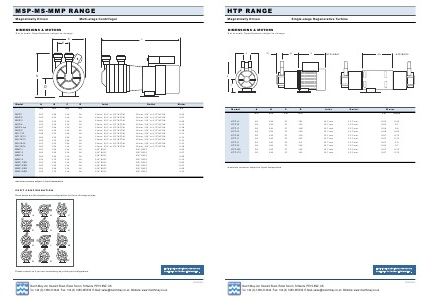

MSP-MS-MMP RANGE
Magnetically Driven
DIMENSIONS & MOTORS
Not to scale. Specifications subject to change.
Multi-stage Centrifugal
C
E
A
B
D
Model
A mm
B mm
C mm
D mm
Inlet
Outlet
Motor Kw
MSP-1 MSP-2 MSP-3 MSP-4 MSP-4 hp MSP-5 MS 7/12 MS 13/13 MS 20/13 MS 26/14 MS 30/14 MMP-1 MMP-2 MMP-3 MMP-4 MMP-1/SR MMP-2/SR MMP-3/SR MMP-4/SR
207 263 281 325 347 362 268 285 303 321 362 207 263 281 325 207 263 281 325
136 152 152 154 154 154 152 152 152 152 154 234 243 234 175 234 243 234 175
114 114 114 114 114 114 144 144 144 144 114 114 114 114 114 114 114 114 114
56 56 56 56 62 62 56 56 56 56 62 56 56 56 56 56 56 56 56
15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 3/8" BSP.F 3/8" BSP.F 3/8" BSP.F 3/8" BSP.F 3/8" BSP.F 3/8" BSP.F 3/8" BSP.F 3/8" BSP.F
15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 15mm, 3/4” or 1/2”NPT.M 3/8" BSP.F 3/8" BSP.F 3/8" BSP.F 3/8" BSP.F 3/8" BSP.F 3/8" BSP.F 3/8" BSP.F 3/8" BSP.F
0.03 0.07 0.09 0.12 0.18 0.18 0.11 0.11 0.11 0.11 0.18 0.03 0.07 0.09 0.12 0.03 0.07 0.09 0.12
maximum pressure subject to liquid temperature
PORT CONFIGURATION
Show below are the standard port configurations for the multi-stage pumps.
A
B
C
E
G
H
K
L
M
N
R
P
Please consult us if you are considering any other port configuration.
Individual model data sheets are available for further information.
19/09/2012
