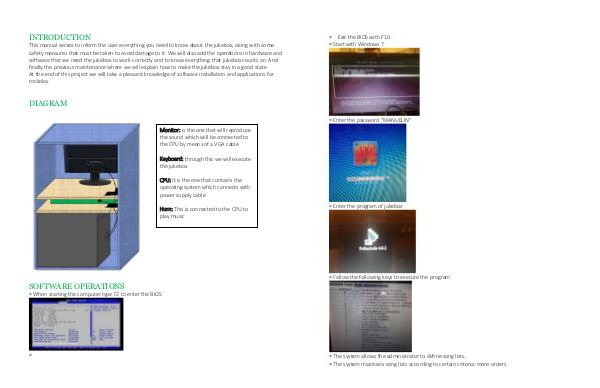

INTRODUCTION
This manual serves to inform the user everything you need to know about the jukebox, along with some
safety measures that must be taken to avoid damage to it. We will also add the operations in hardware and
software that we need the jukebox to work correctly and to know everything that jukebox counts on. And
finally the previous maintenance where we will explain how to make the jukebox stay in a good state
At the end of this project we will take a pleasant knowledge of software installation and applications for
rockolas.
DIAGRAM
Monitor: is the one that will reproduce
the sound which will be connected to
the CPU by means of a VGA cable
Keyboard: through this we will execute
the jukebox
CPU: It is the one that contains the
operating system which connects with
power supply cable
Horn: This is connected to the CPU to
play music
SOFTWARE OPERATIONS
When starting the computer type F2 to enter the BIOS
