38
ChessBase 13

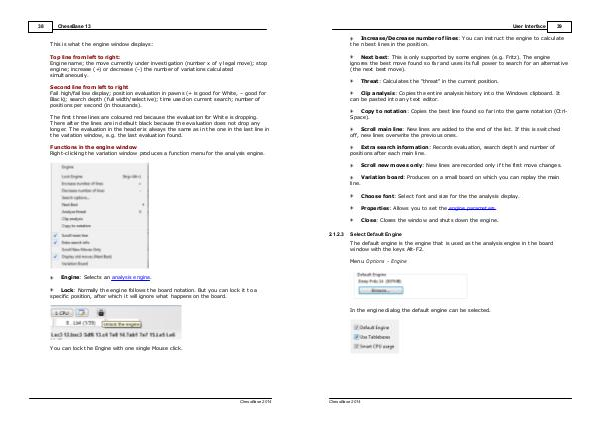

This is what the engine window displays:
Top line from left to right:
Engine name; the move currently under investigation (number x of y legal move); stop
engine; increase (+) or decrease (–) the number of variations calculated
simultaneously.
Second line from left to right
Fail high/fail low display; position evaluation in pawns (+ is good for White, – good for
Black); search depth (full width/selective); time used on current search; number of
positions per second (in thousands).
The first three lines are coloured red because the evaluation for White is dropping.
There after the lines are in default black because the evaluation does not drop any
longer. The evaluation in the header is always the same as in the one in the last line in
the variation window, e.g. the last evaluation found.
Functions in the engine window
Right-clicking the variation window produces a function menu for the analysis engine.
Engine: Selects an analysis engine.
Lock: Normally the engine follows the board notation. But you can lock it to a
specific position, after which it will ignore what happens on the board.
You can lock the Engine with one single Mouse click.
ChessBase 2014
