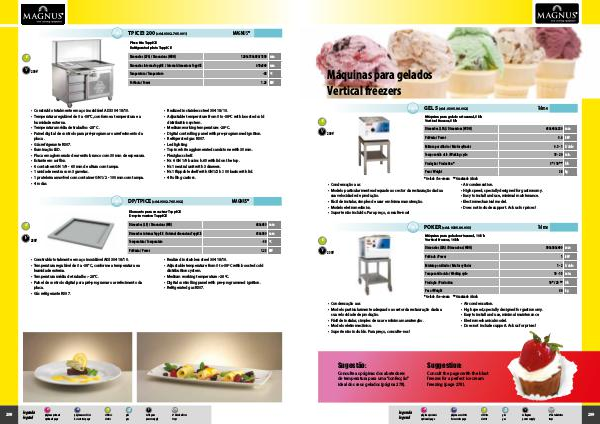

TPICE1200 (cód. 0302.765.001)
MAGNUS®
Placa fria TeppICE
Refrigerated plate TeppICE
Dimensões (LPA) / Dimensions (WDH)
1200x750x850/1350 mm
Dimensões internas TeppICE / Internal dimensions TeppICE
230V
610x560 mm
Temperatura / Temperature -38 ºC
Potência / Power 1.23 kW
• Construído totalmente em aço inoxidável AISI 304 18/10.
• Temperatura regulável de 0 a -38°C, conforme a temperatura e a
humidade externa.
• Temperatura média de trabalho: -28°C .
• Painel digital de controlo para pré-programar o arrefecimento da
placa .
• Gás refrigerante R507.
• Iluminação LED.
• Placa em aglomerado de arenito branco com 30 mm de espessura.
• Estante em acrílico.
• 6 containers GN 1/9 - 65 mm de altura com tampa.
• 1 unidade neutra com 3 gavetas.
• 1 prateleira amovível com container GN 1/2 - 100 mm com tampa.
• 4 rodas.
• Realized in stainless steel 304 18/10.
• Adjustable temperature from 0 to-38ºC with boosted cold
distribuition system.
• Medium working temperature: -28ºC.
• Digital controlling panel with pre-programmed ignition.
• Refrigerated gas R507.
• Led lighting
• Top in white agglomerated sandstone with 30 mm.
• Plexiglass shelf.
• Nr. 6 GN 1/9 basins h.65 with lid on the top.
• Nr.1 neutral unit with 3 drawers.
• Nr.1 flippable shelf with GN1/2 h.100 basin with lid.
• 4 Rolling castors.
DP/TPICE (cód. 0302.765.002)
MAGNUS®
Elemento para encastrar TeppICE
Drop-in version TeppICE
230V
Dimensões (LP) / Dimensions (WD) 680x630 mm
Dimensões internas TeppICE / Internal dimensions TeppICE 610x560 mm
Temperatura / Temperature -38 ºC
Potência / Power 1.23 kW
• Realized in stainless steel 304 18/10.
• Adjustable temperature from 0 to-38ºC with boosted cold
distribuition s
