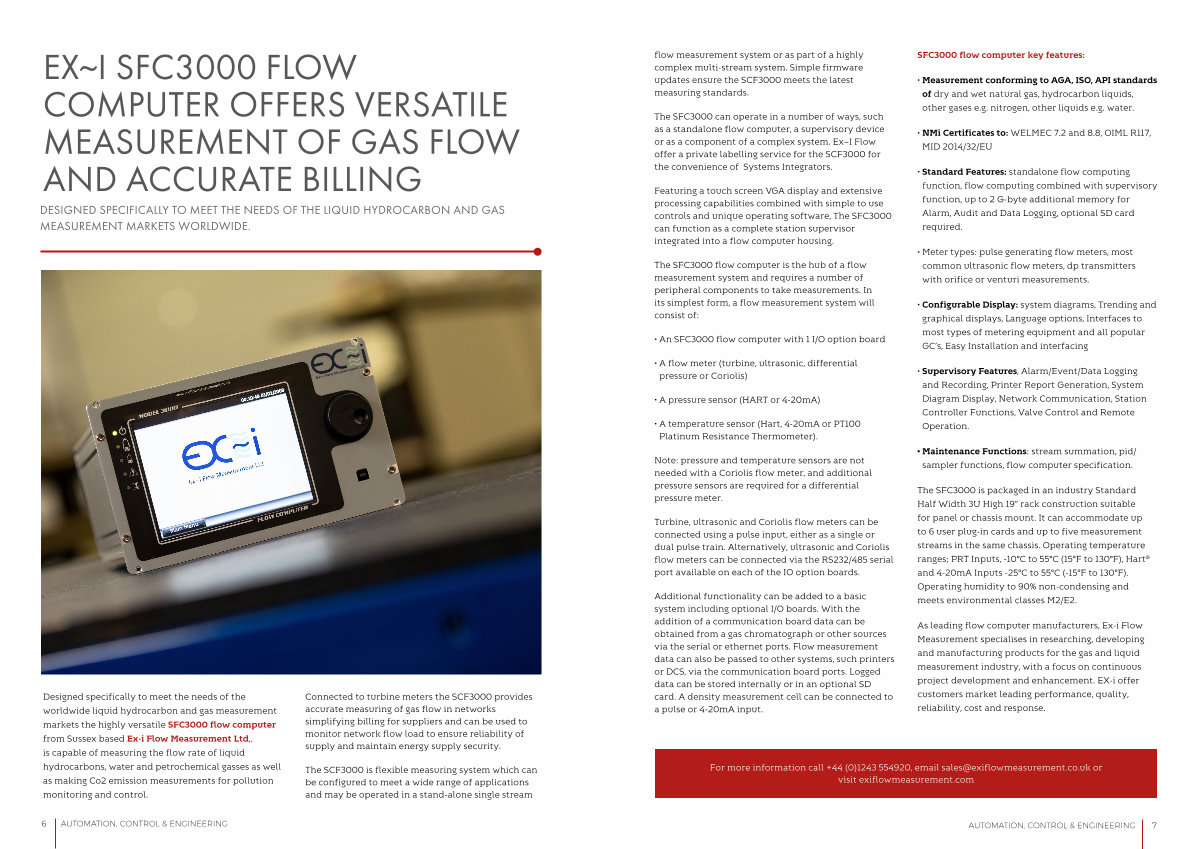

flow measurement system or as part of a highly complex multi-stream system. Simple firmware updates ensure the SCF3000 meets the latest measuring standards.
The SFC3000 can operate in a number of ways, such as a standalone flow computer, a supervisory device or as a component of a complex system. Ex ~ I Flow offer a private labelling service for the SCF3000 for the convenience of Systems Integrators.
Featuring a touch screen VGA display and extensive processing capabilities combined with simple to use controls and unique operating software, The SFC3000 can function as a complete station supervisor integrated into a flow computer housing.
The SFC3000 flow computer is the hub of a flow measurement system and requires a number of peripheral components to take measurements. In its simplest form, a flow measurement system will consist of:
• An SFC3000 flow computer with 1 I / O option board
• A flow meter( turbine, ultrasonic, differential pressure or Coriolis)
• A pressure sensor( HART or 4-20mA)
• A temperature sensor( Hart, 4-20mA or PT100 Platinum Resistance Thermometer).
Note: pressure and temperature sensors are not needed with a Coriolis flow meter, and additional pressure sensors are required for a differential pressure meter.
Turbine, ultrasonic and Coriolis flow meters can be connected using a pulse input, either as a single or dual pulse train. Alternatively, ultrasonic and Coriolis flow meters can be connected via the RS232 / 485 serial port available on each of the IO option boards.
Additional functionality can be added to a basic system including optional I / O boards. With the addition of a communication board data can be obtained from a gas chromatograph or other sources via the serial or ethernet ports. Flow measurement data can also be passed to other systems, such printers or DCS, via the communication board ports. Logged data can be stored internally or in an optional SD card. A density measurement cell can be connected to a pulse or 4-20mA input.
SFC3000 flow computer key features:
• Measurement conforming to AGA, ISO, API standards of dry and wet natural gas, hydrocarbon liquids, other gases e. g. nitrogen, other liquids e. g. water.
• NMi Certificates to: WELMEC 7.2 and 8.8, OIML R117, MID 2014 / 32 / EU
• Standard Features: standalone flow computing function, flow computing combined with supervisory function, up to 2 G-byte additional memory for Alarm, Audit and Data Logging, optional SD card required.
• Meter types: pulse generating flow meters, most common ultrasonic flow meters, dp transmitters with orifice or venturi measurements.
• Configurable Display: system diagrams, Trending and graphical displays, Language options, Interfaces to most types of metering equipment and all popular GC’ s, Easy Installation and interfacing
• Supervisory Features, Alarm / Event / Data Logging and Recording, Printer Report Generation, System Diagram Display, Network Communication, Station Controller Functions, Valve Control and Remote Operation.
• Maintenance Functions: stream summation, pid / sampler functions, flow computer specification.
The SFC3000 is packaged in an industry Standard Half Width 3U High 19” rack construction suitable for panel or chassis mount. It can accommodate up to 6 user plug-in cards and up to five measurement streams in the same chassis. Operating temperature ranges; PRT Inputs,-10 ° C to 55 ° C( 15 ° F to 130 ° F), Hart ® and 4-20mA Inputs-25 ° C to 55 ° C(-15 ° F to 130 ° F). Operating humidity to 90 % non-condensing and meets environmental classes M2 / E2.
As leading flow computer manufacturers, Ex-i Flow Measurement specialises in researching, developing and manufacturing products for the gas and liquid measurement industry, with a focus on continuous project development and enhancement. EX-i offer customers market leading performance, quality, reliability, cost and response.
For more information call + 44( 0) 1243 554920, email sales @ exiflowmeasurement. co. uk or visit exiflowmeasurement. com
