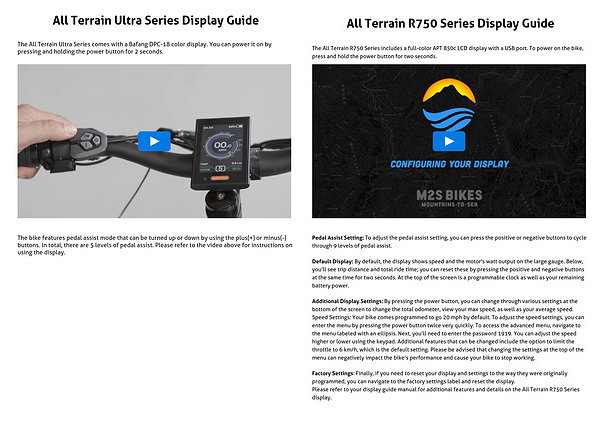

All Terrain R750 Series Display Guide
The All Terrain R750 Series includes a full-color APT 850c LCD display with a USB port. To power on the bike, press and hold the power button for two seconds.
Pedal Assist Setting: To adjust the pedal assist setting, you can press the positive or negative buttons to cycle through 9 levels of pedal assist.
Default Display: By default, the display shows speed and the motor's watt output on the large gauge. Below, you’ll see trip distance and total ride time; you can reset these by pressing the positive and negative buttons at the same time for two seconds. At the top of the screen is a programmable clock as well as your remaining battery power.
Additional Display Settings: By pressing the power button, you can change through various settings at the bottom of the screen to change the total odometer, view your max speed, as well as your average speed.
Speed Settings: Your bike comes programmed to go 20 mph by default. To adjust the speed settings, you can enter the menu by pressing the power button twice very quickly. To access the advanced menu, navigate to the menu labeled with an ellipsis. Next, you’ll need to enter the password 1919. You can adjust the speed higher or lower using the keypad. Additional features that can be changed include the option to limit the throttle to 6 km/h, which is the default setting. Please be advised that changing the settings at the top of the menu can negatively impact the bike’s performance and cause your bike to stop working.
Factory Settings: Finally, if you need to reset your display and settings to the way they were originally programmed, you can navigate to the factory settings label and reset the display.
Please refer to your display guide manual for additional features and details on the All Terrain R750 Series display.
