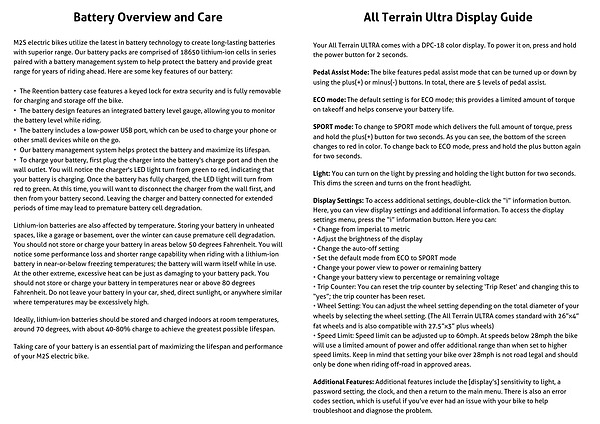

All Terrain Ultra Display Guide
Your All Terrain ULTRA comes with a DPC-18 color display. To power it on, press and hold the power button for 2 seconds.
Pedal Assist Mode: The bike features pedal assist mode that can be turned up or down by using the plus(+) or minus(-) buttons. In total, there are 5 levels of pedal assist.
ECO mode: The default setting is for ECO mode; this provides a limited amount of torque on takeoff and helps conserve your battery life.
SPORT mode: To change to SPORT mode which delivers the full amount of torque, press and hold the plus(+) button for two seconds. As you can see, the bottom of the screen changes to red in color. To change back to ECO mode, press and hold the plus button again for two seconds.
Light: You can turn on the light by pressing and holding the light button for two seconds. This dims the screen and turns on the front headlight.
Display Settings: To access additional settings, double-click the “i” information button. Here, you can view display settings and additional information. To access the display settings menu, press the “i” information button. Here you can:
• Change from imperial to metric
• Adjust the brightness of the display
• Change the auto-off setting
• Set the default mode from ECO to SPORT mode
• Change your power view to power or remaining battery
• Change your battery view to percentage or remaining voltage
• Trip Counter: You can reset the trip counter by selecting ‘Trip Reset’ and changing this to “yes”; the trip counter has been reset.
• Wheel Setting: You can adjust the wheel setting depending on the total diameter of your wheels by selecting the wheel setting. (The All Terrain ULTRA comes standard with 26”x4” fat wheels and is also compatible with 27.5”x3” plus wheels)
• Speed Limit: Speed limit can be adjusted up to 60mph. At speeds below 28mph the bike will use a limited amount of power and offer additional range than when set to higher speed limits. Keep in mind that setting your bike over 28mph is not road legal and should only be done when riding off-road in approved areas.
Additional Features: Additional features include the [display’s] sensitivity to light, a password setting, the clock, and then a return to the main menu. There is also an error codes section, which is useful if you’ve ever had an issue with your bike to help troubleshoot and diagnose the problem.
