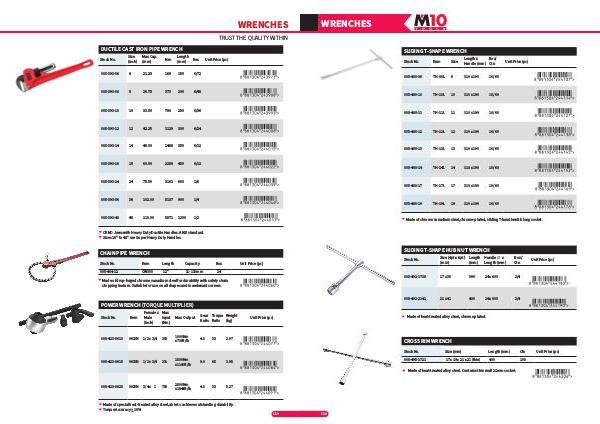

M10 Tools Chapter 4. WRENCHES 4. WRENCHES 2020 | Page 40

WRENCHES
TRUST THE QUALITY WITHIN
DUCTILE CAST IRON PIPE WRENCH
Stock No. Size
(inch) Max Cap.
(mm) N.m Length
(mm) Box
005-393-06 6 21.25 169 150 6/72
005-393-08 8 26.75 373 200 6/48
005-393-10 10 33.50 790 250 6/36
005-393-12 12 42.25 1129 300 6/24
005-393-14 14 48.00 1468 350 6/12
005-393-18 18 60.00 2258 450 6/12
005-393-24 24 75.50 3161 600 1/6
005-393-36 36 102.00 5137 900 1/4
005-393-48 48 110.00 5871 1200 1/2
Unit Price (pc)
CRMO Jaws with Heavy Duty Ductile Handles. ANSI standard.
Sizes 18" to 48" use Super Heavy Duty Handles.
CHAIN PIPE WRENCH
Stock No. Item Length Capacity Box
005-404-12 CW300 12” 11-110mm 24
Unit Price (pc)
Made of drop-forged chrome vanadium steel for durability with safety chain
stopping feature. Suitable for use on all shapes and in awkward corners.
POWER WRENCH (TORQUE MULTIPLIER)
Stock No.
Item
Female x Max
Male
Input
(inch)
(Nm) Max Output Gear Torque Weight
Ratio Ratio (kg)
005-423-0610 0610N 1/2 x 3/4 303 1000Nm
x738ft/lb 4.0 3.3 2.07
005-423-0615 0615N 1/2 x 3/4 231 1500Nm
x1106ft/lb 9.0 6.5 3.95
005-423-0825 0825N 3/4 x 1 758 2500Nm
x1844ft/lb 4.0 3.3 5.27
Made of special heat-treated alloy steel, able to achieve outstanding durability.
Torque Accuracy + 10%
Unit Price (pc)
119
