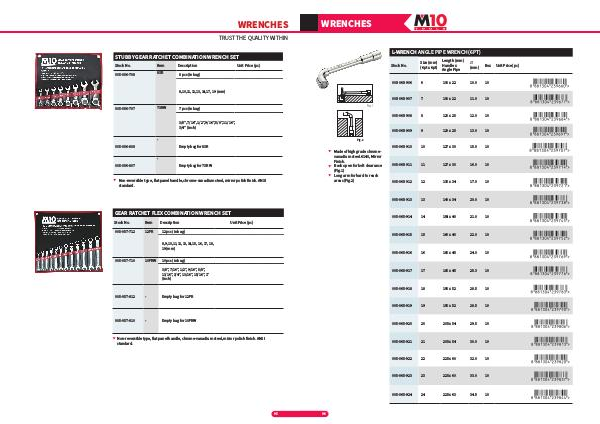

M10 Tools Chapter 4. WRENCHES 4. WRENCHES 2020 | Page 17

WRENCHES
L-WRENCH ANGLE PIPE WRENCH (6PT)
Stock No. Size (mm)
(6pt x 6pt) Length (mm)
Handle x
Angle Pipe Ø
(mm) Box
005-065-906 6 100 x 22 10.0 10
005-065-907 7 100 x 22 11.0 10
005-065-908 8 120 x 25 12.0 10
005-065-909 9 120 x 25 13.0 10
005-065-910 10 127 x 30 15.0 10
005-065-911 11 127 x 30 16.0 10
005-065-912 12 135 x 34 17.0 10
005-065-913 13 140 x 34 20.0 10
005-065-914 14 154 x 40 21.0 10
005-065-915 15 160 x 40 22.0 10
005-065-916 16 185 x 45 24.0 10
005-065-917 17 185 x 45 25.3 10
005-065-918 18 195 x 52 28.5 10
005-065-919 19 195 x 52 28.5 10
005-065-920 20 205 x 54 29.5 10
005-065-921 21 205 x 54 30.0 10
005-065-922 22 225 x 60 32.0 10
005-065-923 23 225 x 60 33.0 10
005-065-924 24 225 x 63 34.5 10
Fig.2
Made of high grade chrome-
vanadium steel. 6140, Mirror
Finish.
Back open for bolt clearance
(Fig.1)
Long arm for hard to reach
areas (Fig.2)
96
Unit Price (pc)
