LYNX Series 5000 - October 2013 October 2013

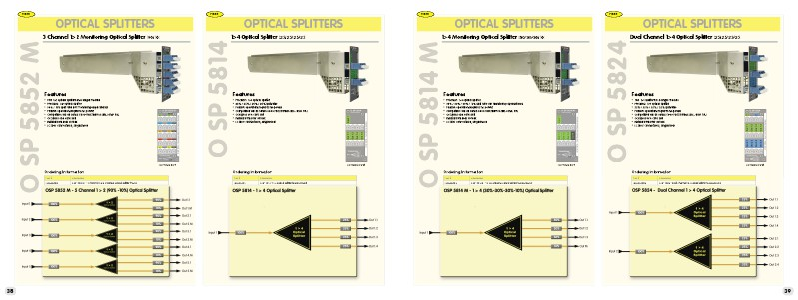

FIBER FIBER OPTICAL SPLITTERS OPTICAL SPLITTERS Features • • • • • • • • 1>4 Optical Splitter (25/25/25/25) O SP 5814 O SP 5852 M 5 Channel 1>2 Monitoring Optical Splitter (90/10) Features Five 1>2 optical splitters in a single module Precision 1>2 optical splitter 90% / 10% split ratio (for monitoring applications) Passive operation (requires no power) Compatible will all Series 5000 rack frames (2RU and 1RU) Occupies one card slot Installs from rear of rack LC ?ber connections, singlemode • • • • • • • Precision 1>4 optical splitter 25% / 25% / 25% / 25% split ratio Passive operation (requires no power) Compatible will all Series 5000 rack frames (2RU and 1RU) Occupies one card slot Installs from rear of rack LC ?ber connections, singlemode Connection Panel Ordering Information Connection Panel Ordering Information Part # 38 Description Part # Description 1000025852 O SP 5852 M - 5 channel 1>2 Monitoring Optical Splitter (90/10) 1000005814 O SP 5814 - 1>4 Opti cal Splitter (25/25/25/25)

LYNX Series 5000 - October 2013 October 2013 | Page 38
