LYNX Series 5000 - October 2013 October 2013

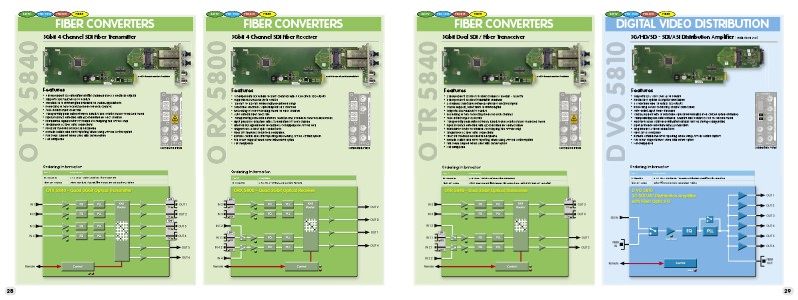

SDTV HD 1.5G HD 3G SDTV FIBER HD 1.5G FIBER CONVERTERS Features O RX 5800 O TX 5840 3Gbit 4 Channel SDI Fiber Receiver Module shown plugged into backplane Module shown plugged into backplane Features 4 independent SDI optical transmitter channels and 2 x electrical outputs Supports SDI/ASI/DVB up to 3Gbit/s Selection of 18 wavelengths available for CWDM applications Reclocking or non-reclocking mode for each channel Auto-detects input clock rate Transparently pass data between 15Mbit/s and 3Gbit/s in non-reclocked mode. Input presence detection with LED indication for each channel Internal 4x6 signal router for ?exible I/O mapping (via APPolo only) Singlemode LC ?ber optic connections Fiber SFP modules secured in backplane Remote control and error reporting when using APPolo control system Full SNMP support when used with server option Hot swappable • • • • • • • • • • • • • • Connection Panel Ordering Information FIBER FIBER CONVERTERS 3Gbit 4 Channel SDI Fiber Transmitter • • • • • • • • • • • • • HD 3G 4 independent SDI optical receiver channels with 4 x electrical SDI outputs Supports SDI/ASI/DVB up to 3Gbit/s 1260nm to 1620nm wavelength operational range Selectable electrical / optical inputs for 2 channels Reclocking or non-reclocking mode for each channel Auto-detects input clock rate Transparently pass data between 15Mbit/s and 3Gbit/s in non-reclocked mode. Input presence detection with LED indication for each channel Internal 4x4 signal router for ?exible I/O mapping (via APPolo only) Singlemode LC ?ber optic connections Fiber SFP modules secured in backplane. Remote control and error reporting when using APPolo control system Full SNMP support when used with server option Hot swappable Connection Panel Ordering Information Part # O TX 5840 - 3Gbit Quad SDI Fiber Transmitter Part # Description Fiber SFP Options 28 Description 6155025840 Select two dual channel ?ber transmitter options from Table B 6155025800 O RX 5804 - 3Gbit Quad SDI Fiber Receiver

LYNX Series 5000 - October 2013 October 2013 | Page 28
